New In Packaging Renold 40SSRB 10' 1/2" Pitch Roller Chain Steel Riveted
New In Packaging Renold 40SSRB 10' 1/2" Pitch Roller Chain Steel Riveted
Industrial
Chain For sale is a New In Packaging 40SSRB 10' 1/2" Pitch, 240 Links, Roller Chain, Steel riveted. This chain appears to be new in original packaging with no signs of use or wear. Overall the condition of this chain is...
$144.89
×
Freight Quote
- Category: Industrial
Chain

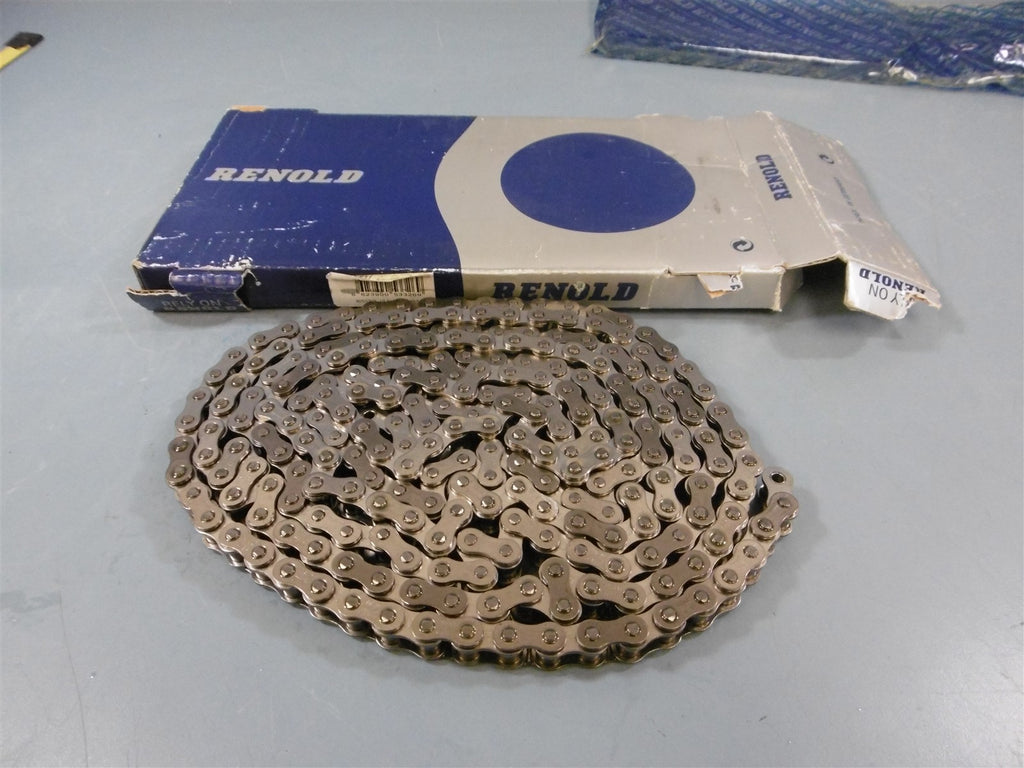

For sale is a New In Packaging 40SSRB 10' 1/2" Pitch, 240 Links, Roller Chain, Steel riveted. This chain appears to be new in original packaging with no signs of use or wear. Overall the condition of this chain is excellent as it does appear to be new.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
