New Merrick CNHJS-6065DAY-121 121:1 .13HP 1750RPM 266TQ Cyclo 6000
New Merrick CNHJS-6065DAY-121 121:1 .13HP 1750RPM 266TQ Cyclo 6000
Industrial

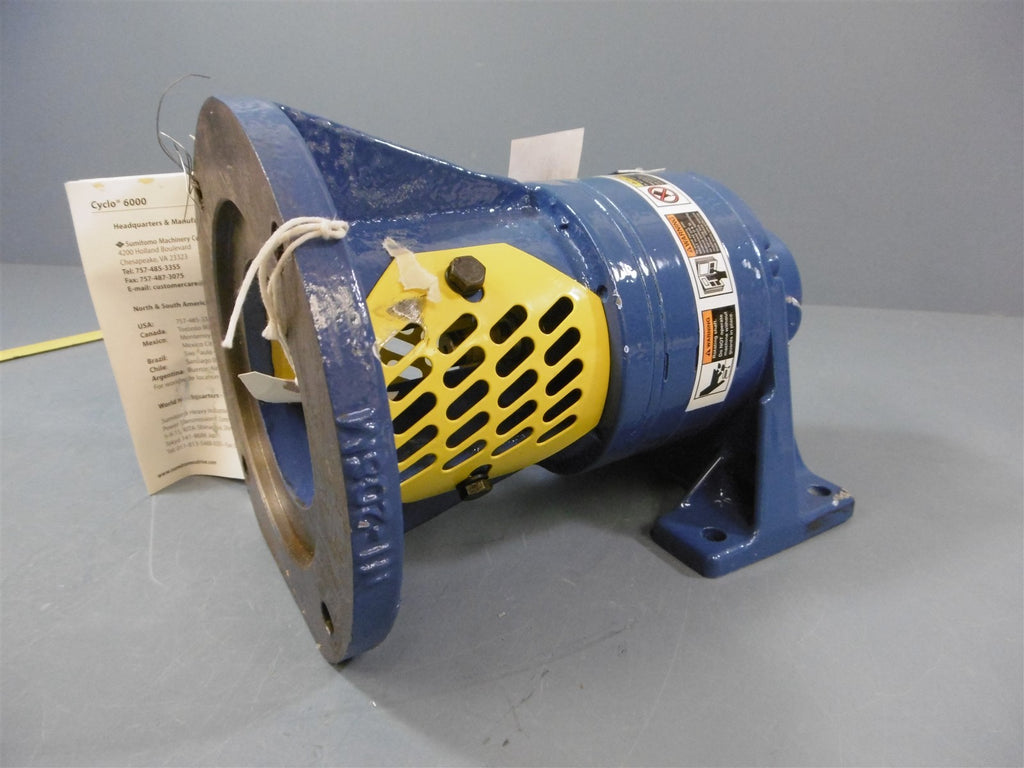

Reducer For sale is a New Merrick CNHJS-6065DAY-121, 121:1, .13HP, 1750RPM, 266TQ. This reducer appears to be new as there are no typical signs of use or wear. This reducer shows signs of light shelf wear including light scratches and scuffs. 1/2"...
$188.99
×
Freight Quote
- Category: Industrial
Reducer
For sale is a New Merrick CNHJS-6065DAY-121, 121:1, .13HP, 1750RPM, 266TQ. This reducer appears to be new as there are no typical signs of use or wear. This reducer shows signs of light shelf wear including light scratches and scuffs. 1/2" Shaft
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
