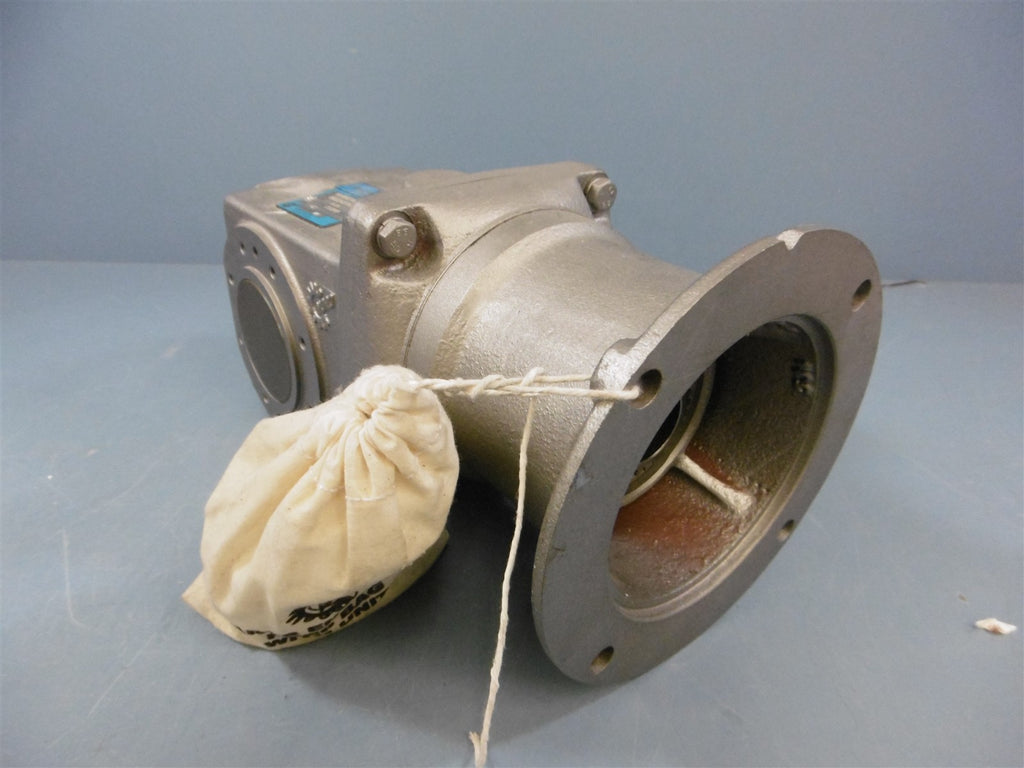

New Nordson 92172VZ N56C 41.26:1 1018 In Lb TQ 42RPM B5 Position Reducer
New Nordson 92172VZ N56C 41.26:1 1018 In Lb TQ 42RPM B5 Position Reducer
Industrial
Reducer For sale is a New Nordson 92172VZ, N56C, 41.26:1, 1018 In Lb TQ, 42RPM, B5 Position, Gear Reducer. This reducer appears to be new with no signs of use or wear. There are signs of light shelf wear on the unit...
$125.99
×
Freight Quote
- Category: Industrial
Reducer
For sale is a New Nordson 92172VZ, N56C, 41.26:1, 1018 In Lb TQ, 42RPM, B5 Position, Gear Reducer. This reducer appears to be new with no signs of use or wear. There are signs of light shelf wear on the unit due to being moved, limited to light scratches and paint chips. Overall the condition of the reducer is excellent.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
