New Sumitomo Drive Cyclo 6000 PA145583 1:165 1.56HP 1750RPM CHV-6135DCY-165
New Sumitomo Drive Cyclo 6000 PA145583 1:165 1.56HP 1750RPM CHV-6135DCY-165
Industrial
Reducer For sale is New Sumitomo Drive Technology PA145583, 1:165, 1.56HP, 1750RPM, CHV-6135DCY-165, cyclo 6000. This motor appears to be brand new as there are no signs of use or wear. Overall the condition of the motor is excellent as there are only...
$179.99
×
Freight Quote
- Category: Industrial
Reducer

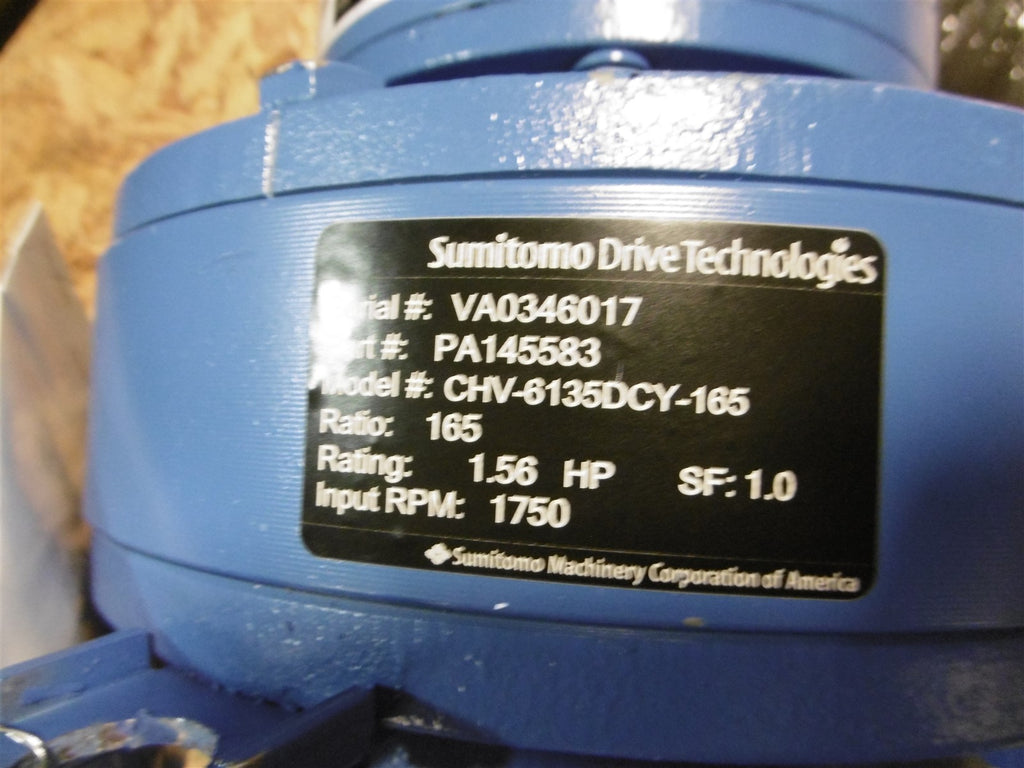

For sale is New Sumitomo Drive Technology PA145583, 1:165, 1.56HP, 1750RPM, CHV-6135DCY-165, cyclo 6000. This motor appears to be brand new as there are no signs of use or wear. Overall the condition of the motor is excellent as there are only minimal signs of shelf wear present.Shipping:
Shipping costs will depend on location. Please contact us for shipping costs prior to bidding. When requesting a shipping quote, please include your zipcode and whether the unit will be delivered to a residence or a business with a truck high dock or forklift.
Local pickup in Rochester, NY 14606 is free
The buyer can set up freight themselves (a packaging fee of dollars will be added to the total) or we can provide a competitive quote to the buyer.
Shipping weight 105 lbs.
PLEASE NOTE: Due to the way freightquote.com words their Bills of Lading, we will no longer be allowing any shipments made through them. You can contact us for more details, but please be advised that we will not sign a freightquote.com BOL. We apologize for any inconvenience and we will do everything we can to assist in finding the best freight price we can.
All others will be charged according to their location
Sales tax of 8% will be charged to New York State residents and businesses.
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
