New Winsmith Gear Reducer NO78 1800RPM 004WCVS41000EK 1.31HP In 30:1 2014
New Winsmith Gear Reducer NO78 1800RPM 004WCVS41000EK 1.31HP In 30:1 2014
Industrial

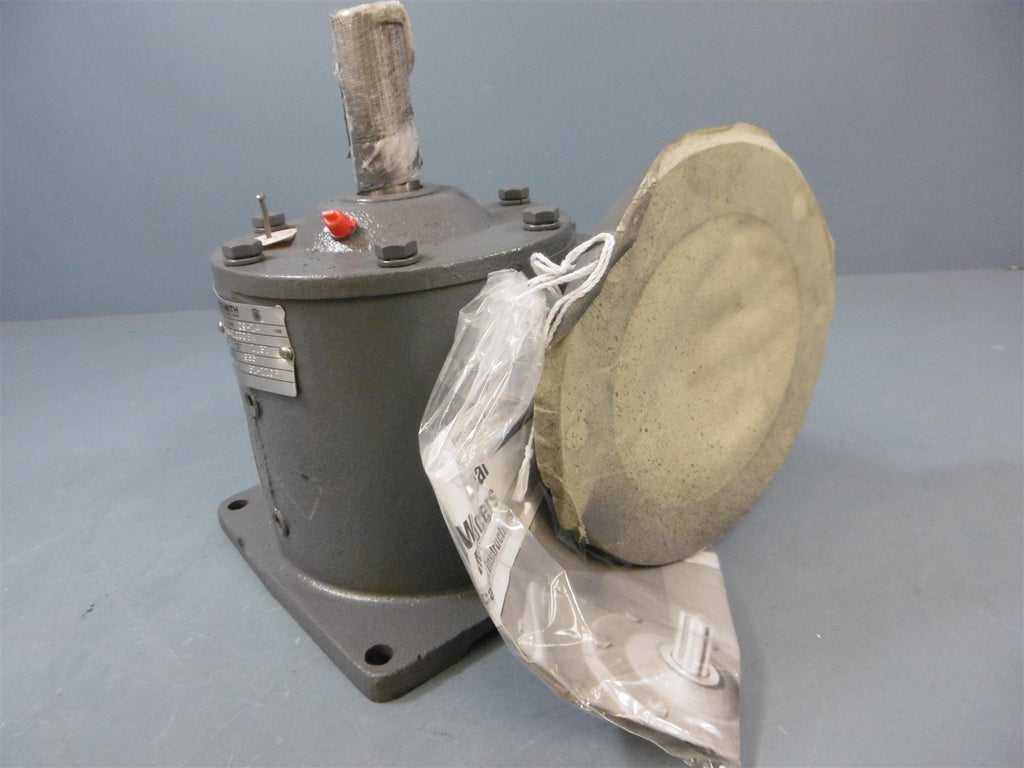

Reducer For sale is a New Winsmith Gear Reducer, NO78, 1800RPM, 004WCVS41000EK, 1.31HP In, 30:1, 2014, 1" Shaft. This reducer appears to be new as there are no typical signs of use present. There are light scratches and scuffs along with paint...
$199.99
×
Freight Quote
- Category: Industrial
Reducer
For sale is a New Winsmith Gear Reducer, NO78, 1800RPM, 004WCVS41000EK, 1.31HP In, 30:1, 2014, 1" Shaft. This reducer appears to be new as there are no typical signs of use present. There are light scratches and scuffs along with paint chips due to shelf wear. Overall the condition of this reducer is excellent as it does appear to be new.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
