New Winsmith Reducer 926MDSR 1750RPM 1.12HP In 40:1 1166 TQ Out

Industrial

Reducer For sale is a New Winsmith Reducer 926MDSR, 1750RPM, 1.12HP In, 40:1, 1166 TQ Out, 1.5" Bore. This reducer appears to be new as there are no typical signs of use present. The bore is clean and free from marks that would...

$157.49

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Reducer

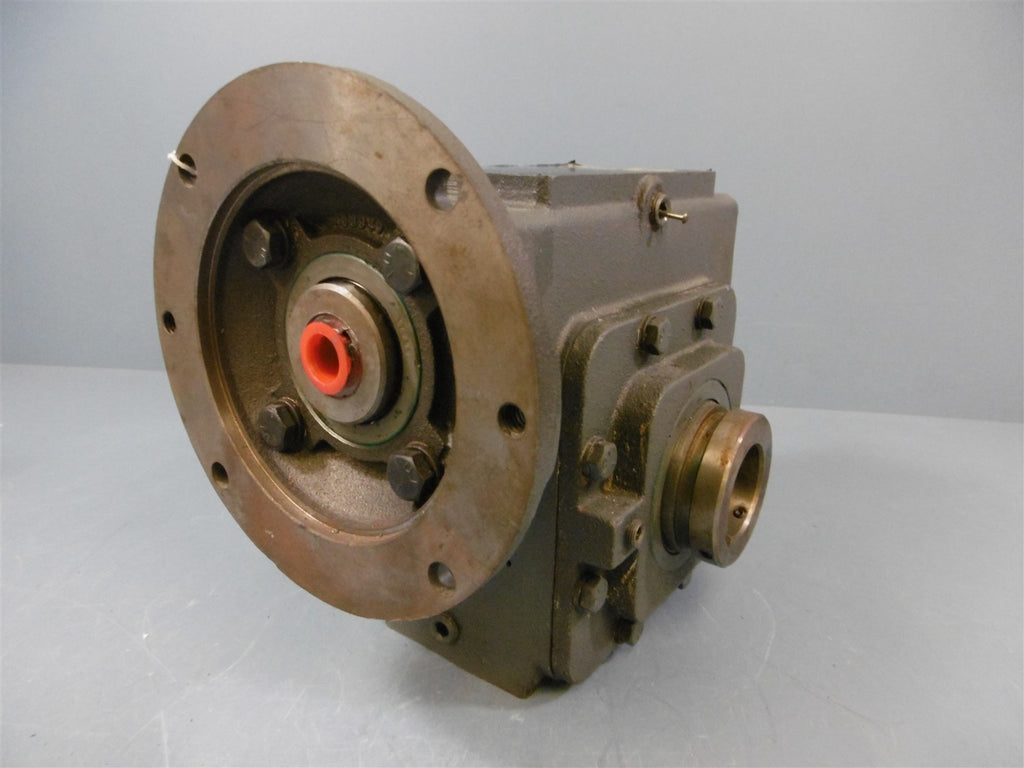

For sale is a New Winsmith Reducer 926MDSR, 1750RPM, 1.12HP In, 40:1, 1166 TQ Out, 1.5" Bore. This reducer appears to be new as there are no typical signs of use present. The bore is clean and free from marks that would be typical of use. There are signs of shelf wear such as scratches, scuffs, grease marks, light surface rust and paint chips. Overall the condition is very good.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
