Niagara 1" HSCO 56326 J5 4 Flute Professionally CNC Resharp Double End Mill

Industrial

Double End Mill For sale is a Niagara 1" HSCO 56326 J5, 4 Flute Professionally CNC Resharpened Double End Mill. The mill is used but has been resharpened and kept in protective wax. The item is should be in excellent...

$17.91

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Double End Mill

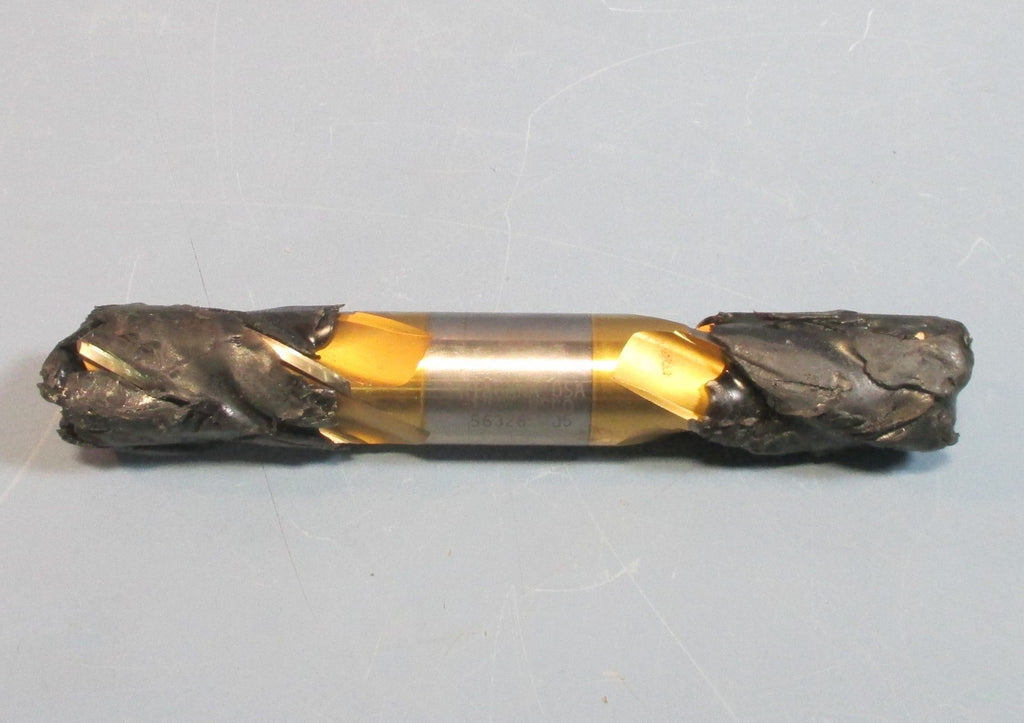

For sale is a Niagara 1" HSCO 56326 J5, 4 Flute Professionally CNC Resharpened Double End Mill. The mill is used but has been resharpened and kept in protective wax. The item is should be in excellent usable condition under the wax. Some wax may be cutting or peeling away from the ends. Some light signs of wear, use and/or discoloration may appear from the previous owner. Ends are TiN coated but the cutting surface may be missing it from being sharpened.
Note that the cutting diameter may be slightly reduced from the sharpening.
Rough Measurements:
Total Length: 6.5"
Cutting Length: 2"
Flute Length: 2.5"
Shaft Center Length: 1.5"
Shaft Dia: 1"

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
