NIB SEALED Allen Bradley 17710W Series A Selectable Contact Output Module
NIB SEALED Allen Bradley 17710W Series A Selectable Contact Output Module
Industrial
Output module For sale is a NIB SEALED Allen Bradley 17710W, Series A, Selectable Contact Output Module. This module is brand new and sealed in packaging with no signs of opening or damage. The packaging may show some marker marks or stickering. Shipping:...
$539.99
×
Freight Quote
- Category: Industrial
Output module

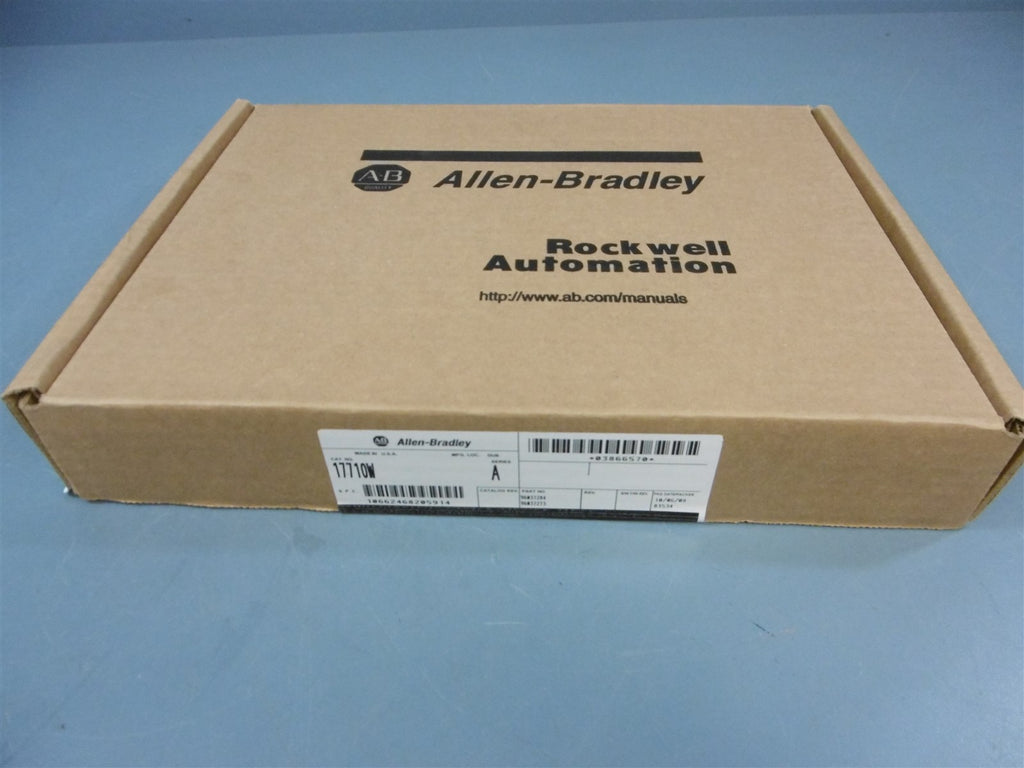

For sale is a NIB SEALED Allen Bradley 17710W, Series A, Selectable Contact Output Module. This module is brand new and sealed in packaging with no signs of opening or damage. The packaging may show some marker marks or stickering.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
