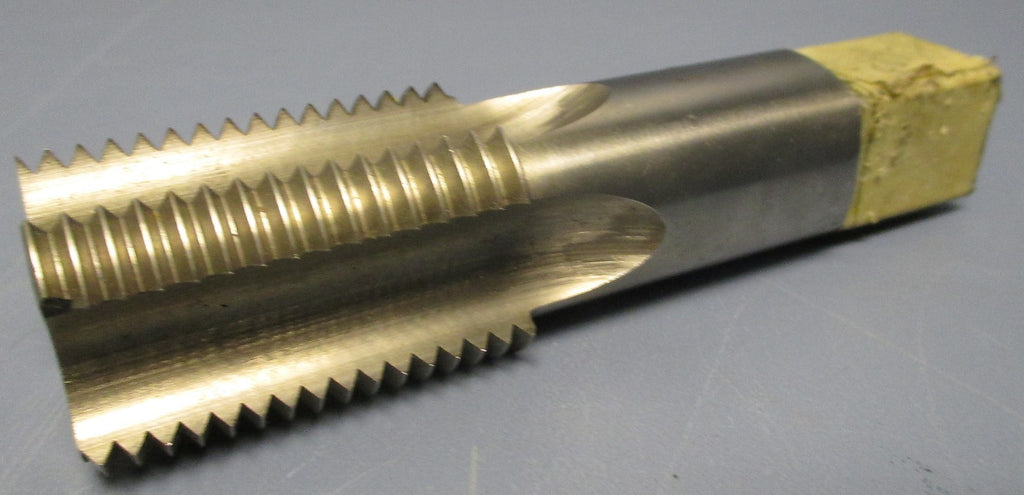

No. Attleboro Bottoming Tap, 1 3/8-8, N, GH4, HSS, 4 Flute

Industrial

Plug Tap For sale is a No. Attleboro Bottoming Tap, 1 3/8-8, N, GH4, HSS, 4 Flute. Item appears to have been gently used by the previous owner. Item may show minor signs of cosmetic wear, including scratching, discoloration, tape/...

$15.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Plug Tap

For sale is a No. Attleboro Bottoming Tap, 1 3/8-8, N, GH4, HSS, 4 Flute. Item appears to have been gently used by the previous owner. Item may show minor signs of cosmetic wear, including scratching, discoloration, tape/ tape residue and other signs of shelf wear that will not impact the item's performance or functionality. Threads on the tap appear sharp and show no apparent signs of chipping. Overall, the item is in good, used, ready to use condition.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
