Numatics P2AR-10A7E-AAA0 10" Stroke 1.25" Threads 1.37" Shaft Pneumatic Cylinder
Numatics P2AR-10A7E-AAA0 10" Stroke 1.25" Threads 1.37" Shaft Pneumatic Cylinder
Industrial
Cylinder For sale is a Numatics P2AR-10A7E-AAA0, 10" Stroke, 1.25" Threads, 1.37" Shaft, Pneumatic Cylinder. This cylinder appears to be new as there are no typical signs of use or wear. Overall the condition of the cylinder is excellent as...
$107.99
×
Freight Quote
- Category: Industrial
Cylinder

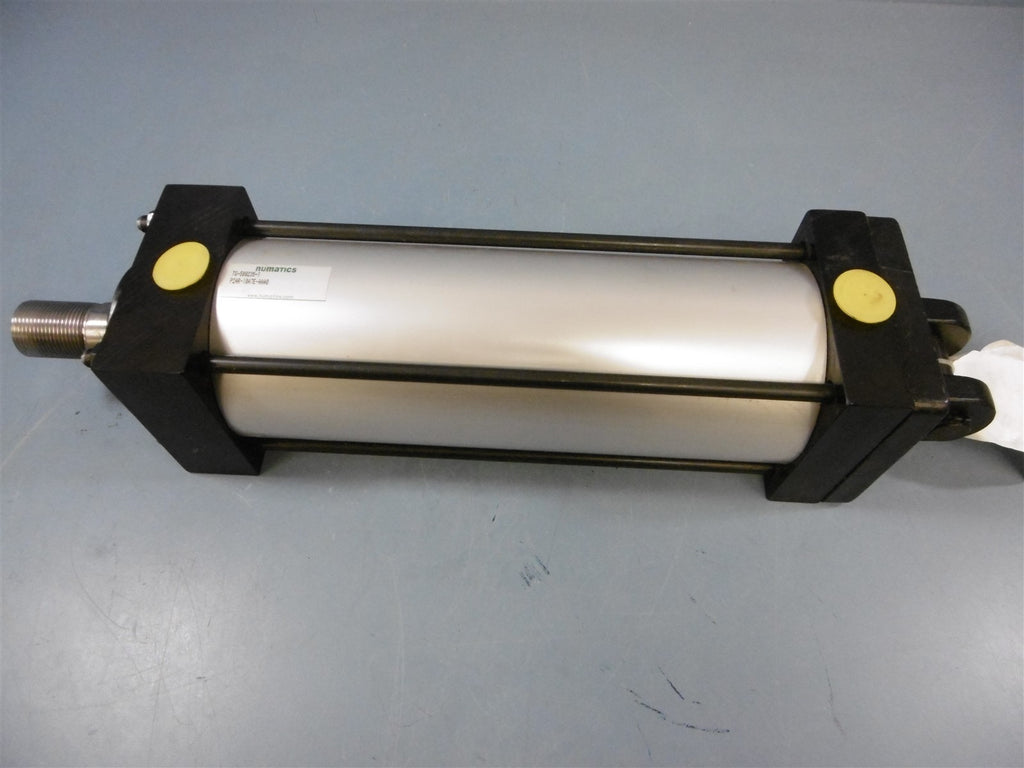

For sale is a Numatics P2AR-10A7E-AAA0, 10" Stroke, 1.25" Threads, 1.37" Shaft, Pneumatic Cylinder. This cylinder appears to be new as there are no typical signs of use or wear. Overall the condition of the cylinder is excellent as it appears to be new. There are light scratches and scuffs due to shelf wear.
Any dimensions listed are considered as rough measures.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
