Parker Air Pressure Regulator Model 07R311ACL030 Preset 30 PSI 3/4" NPT Used
Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.
Parker Air Pressure Regulator Model 07R311ACL030 Preset 30 PSI 3/4" NPT Used
Industrial

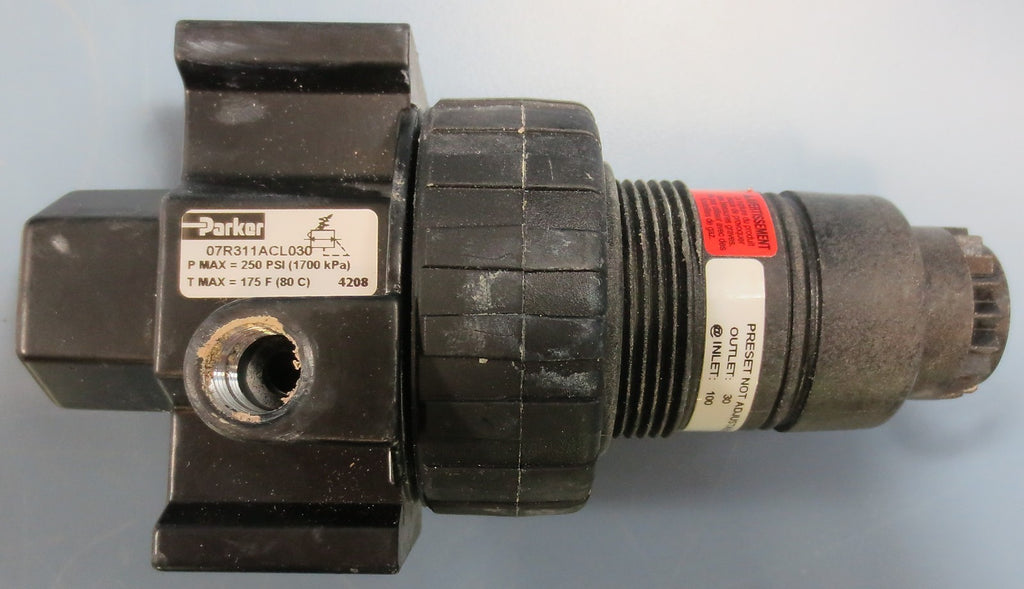

Air Pressure Regulator You are bidding on one Parker Air Pressure Regulator Model 07R311ACL030. The regulator is used and it does not come with its original packaging. There are some small scratches present on the regulator due to shelf wear...
$19.99
×
Freight Quote
- Category: Industrial
|
Air Pressure Regulator You are bidding on one Parker Air Pressure Regulator Model 07R311ACL030. The regulator is used and it does not come with its original packaging. There are some small scratches present on the regulator due to shelf wear as well as signs of connection from the previous owner. Overall this unit remains in very good condition and is sold as-is. 3/4" NPT Outlet 250 PSI Max but Preset to 30 PSI and Not Adjustable
Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
