Pilz PSWZ/24VGS Safety Relay AC15: 250VWS 6A 1300VA 6AF/ 4AT Indent. Nr: 474945
Pilz PSWZ/24VGS Safety Relay AC15: 250VWS 6A 1300VA 6AF/ 4AT Indent. Nr: 474945
Industrial
Safety Valve For sale is a Pilz PSWZ/24VGS Safety Relay AC15: 250VWS 6A 1300VA 6AF/ 4AT Indent. Nr: 474945. This is used and does not have original packaging. This unit remains in very good, clean condition and comes with what is shown in...
$55.99
×
Freight Quote
- Category: Industrial
Safety Valve

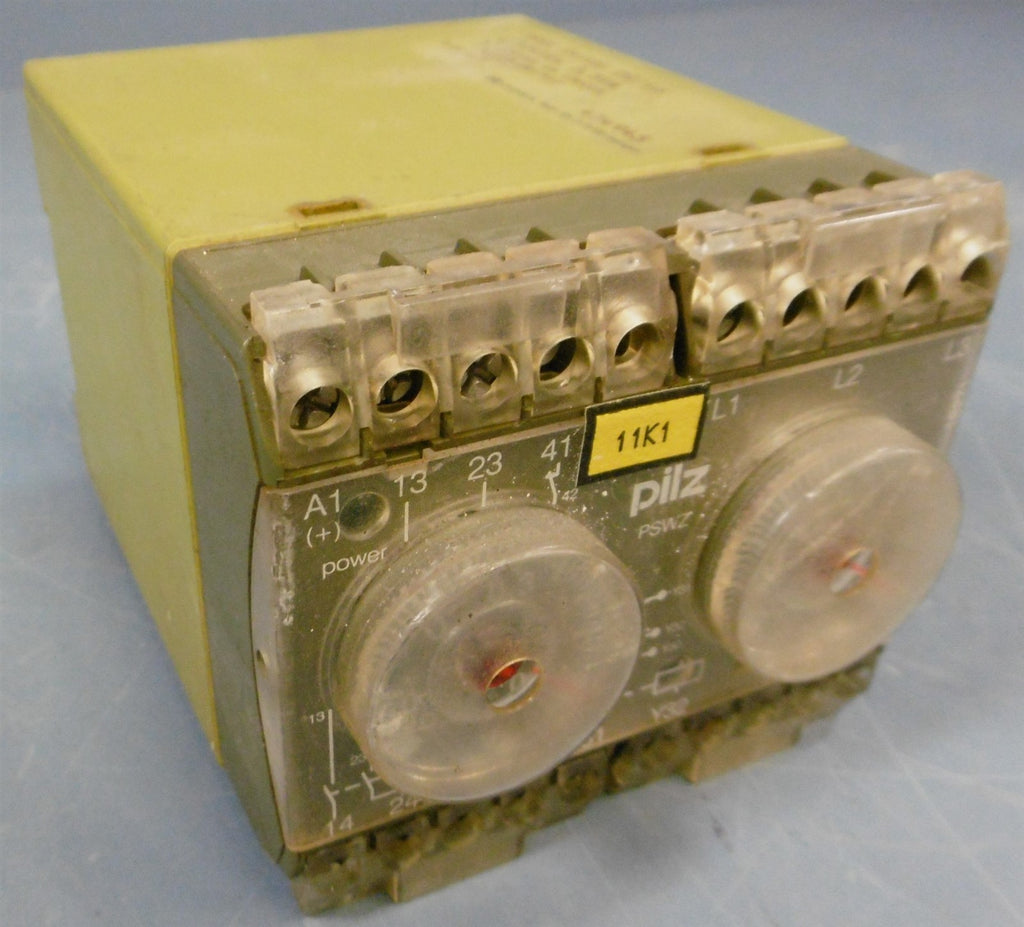

For sale is a Pilz PSWZ/24VGS Safety Relay AC15: 250VWS 6A 1300VA 6AF/ 4AT Indent. Nr: 474945. This is used and does not have original packaging. This unit remains in very good, clean condition and comes with what is shown in the photos.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
