Putnam 1-1/2" 6 Flute End Mill Lead 7.845 2-1/4" Shank 2.05" Cut Length Used

Industrial

End Mill You are bidding on a Putnam 1-1/2" Diameter, 6 Flute End Mill with 7.845 Lead, 2.25" Shank and 2.05" cutting length. Item may have been used but appears in excellent functional condition. One of the cutting surfaces has...

$20.15

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

End Mill

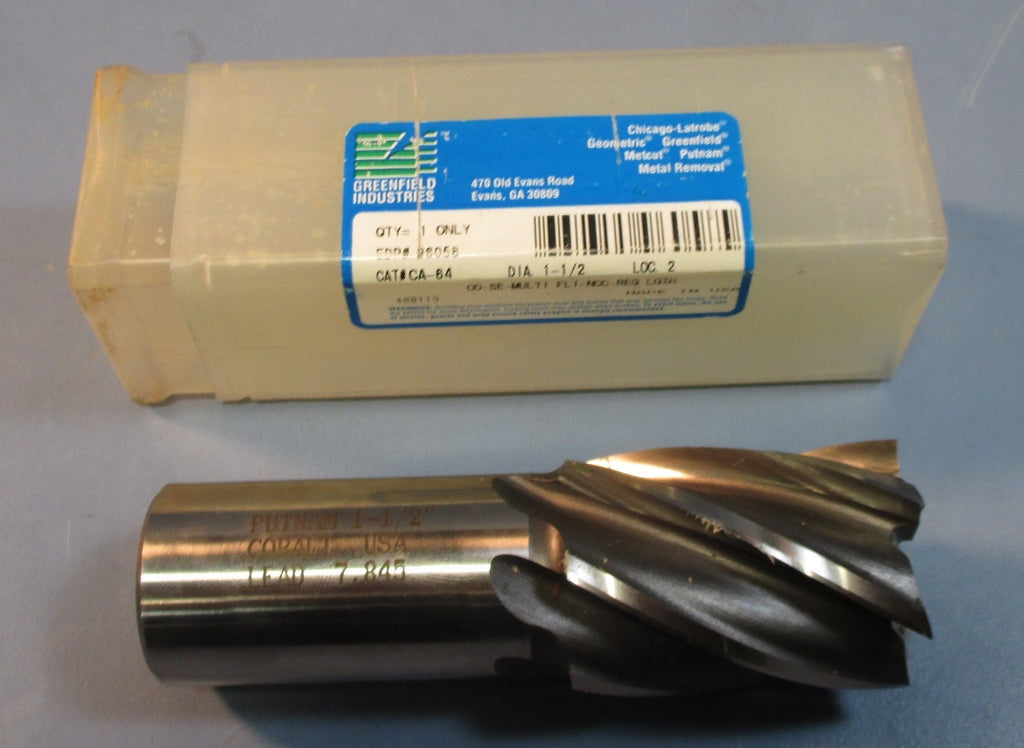

You are bidding on a Putnam 1-1/2" Diameter, 6 Flute End Mill with 7.845 Lead, 2.25" Shank and 2.05" cutting length. Item may have been used but appears in excellent functional condition. One of the cutting surfaces has a small chip out of it (see pictures). Item shows some light signs of surface rust but nothing that appears in areas that will impact the overall performance of the product. Item comes in the original plastic tube which may show some sings of wear, scratching and/or discoloration.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
