Putnam 1" Lead 5.528 HS 4 Flute End Mill Professionally CNC Resharpened Used
Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.
Putnam 1" Lead 5.528 HS 4 Flute End Mill Professionally CNC Resharpened Used
Industrial
Resharpened End Mill For sale is a Putnam 1" Lead 5.528 HS 4 Flute End Mill that is Professionally CNC Resharpened. The item is used but in excellent condition as it has been resharpened and kept in the protective wax. ...
$24.31
×
Freight Quote
- Category: Industrial
|

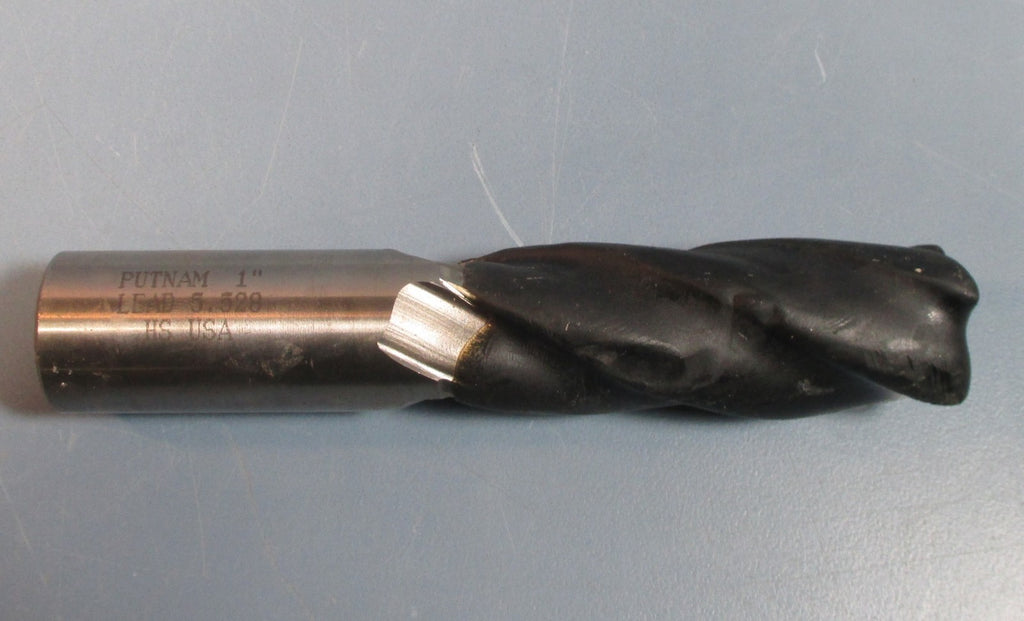

Resharpened End Mill For sale is a Putnam 1" Lead 5.528 HS 4 Flute End Mill that is Professionally CNC Resharpened. The item is used but in excellent condition as it has been resharpened and kept in the protective wax. The shaft may show some light signs of wear, use and/or discoloration from the previous owner but nothing that will impact the performance of the product.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
