RBC Heim Bearings HFL8G 0.5" Bore, .5-20 Threads, Female Rod End Bearing NEW

Industrial

Heim Bearing For Sale is a RBC Heim Bearings HFL8G 0.5" Bore, .5-20 Threads, Female Rod End Bearing. Item appears new and unused by previous owner. Item comes in cardboard case as seen in photos. Case may show cosmetic signs of shelfwear...

$15.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Heim Bearing

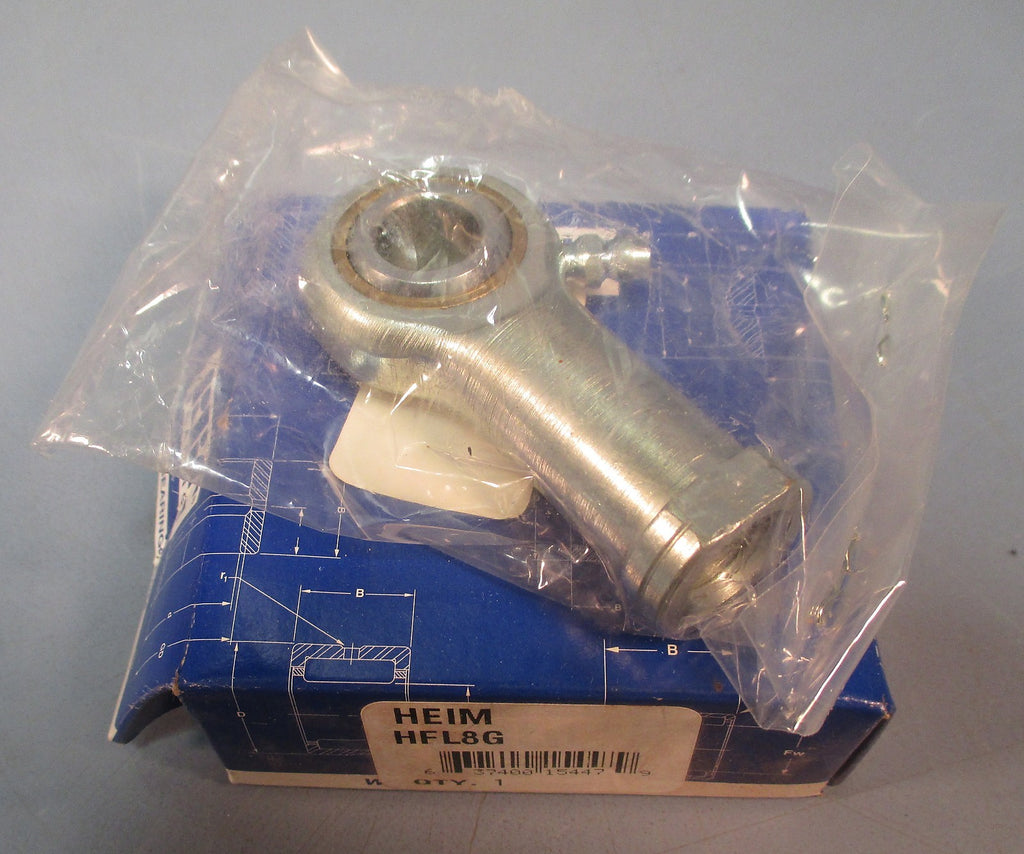

For Sale is a RBC Heim Bearings HFL8G 0.5" Bore, .5-20 Threads, Female Rod End Bearing. Item appears new and unused by previous owner. Item comes in cardboard case as seen in photos. Case may show cosmetic signs of shelfwear that will not impact the items performance. Overall the item is in excellent, new, ready to use condition.
APPROXIAMTE MEASURES:
Bore: 0.0005"
Thread: 0.0005-20

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
