Regal 2"-50 NS HS GH-4 6 Flute Bottoming Tap

Industrial

BOTTOMING TAP For sale is a Regal 2"-50 NS HS GH-4 6 Flute Bottoming Tap. Item appears to have been used in a working environment by the previous owner. Items may show signs of scratching, shelf wear, tape/tape residue and/or discoloration...

$19.19

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

BOTTOMING TAP

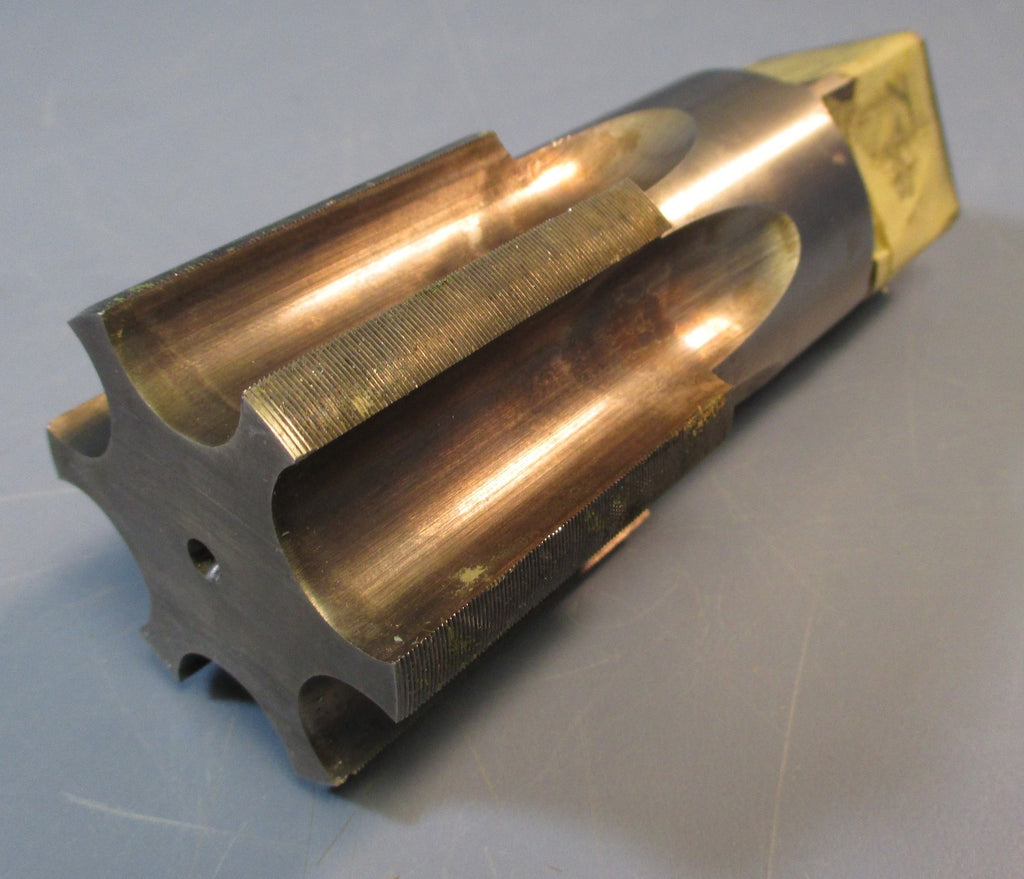

For sale is a Regal 2"-50 NS HS GH-4 6 Flute Bottoming Tap. Item appears to have been used in a working environment by the previous owner. Items may show signs of scratching, shelf wear, tape/tape residue and/or discoloration from previous owner. Threads may show some signs of light chipping and/or scratching that shouldn't impact product performance. Overall, the item appears to be in used, work ready condition.
Approximate Measures:
Tap Length: 5.06"
Thread Length: 2.11"
Flute Length: 3.00"
Shaft from Flute: 2.10"
Tang Length: 1.31"

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
