Reuland 0050E-1BAN-0068 5 HP 284UDZ Fr Motor Type COTO 3 Ph 1200 PRM 480 V Used
Reuland 0050E-1BAN-0068 5 HP 284UDZ Fr Motor Type COTO 3 Ph 1200 PRM 480 V Used
Industrial
Motor For sale is a Reuland 0050E-1BAN-0068 5 HP, 284UDZ Frame Motor Type COTO, 3 Phase, 1200 RPM, 480 Volts. The motor is used and came from a working environment. It may have been refurbished but we do not know...
$151.19
×
Freight Quote
- Category: Industrial
Motor

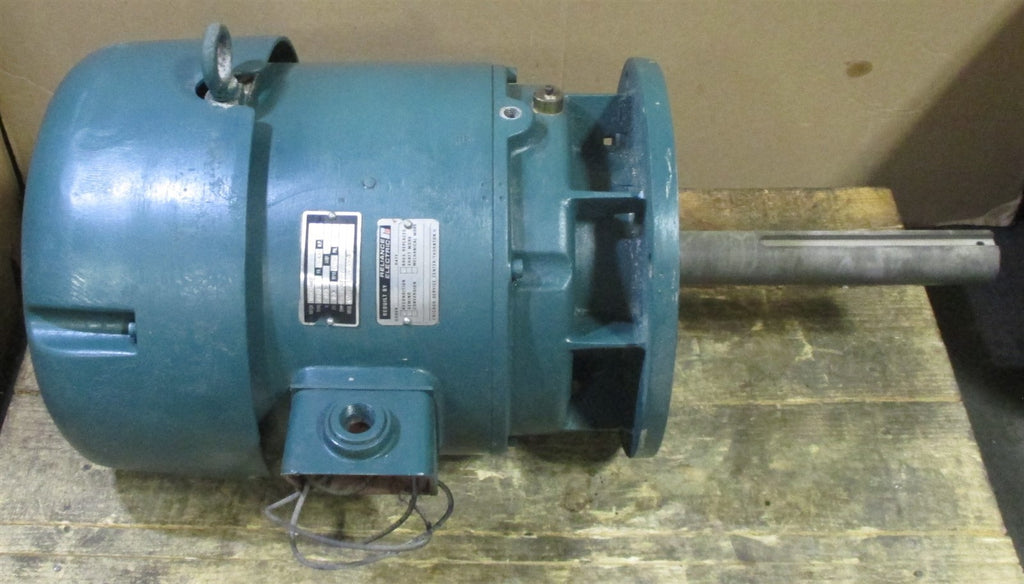

For sale is a Reuland 0050E-1BAN-0068 5 HP, 284UDZ Frame Motor Type COTO, 3 Phase, 1200 RPM, 480 Volts. The motor is used and came from a working environment. It may have been refurbished but we do not know if it was used after the rebuild. The unit will be green or grey. Some light cosmetic imperfections may show from the previous owner and transport but nothing that will impact performance. Overall the motor remains in very good condition.
Shaft OD: 1.94"
Shipping:
Shipping costs will depend on location. Please contact us for shipping costs prior to bidding. When requesting a shipping quote, please include your zipcode and whether the unit will be delivered to a residence or a business with a truck high dock or forklift.
Local pickup in Rochester, NY 14606 is free
The buyer can set up freight themselves (a packaging fee of dollars will be added to the total) or we can provide a competitive quote to the buyer.
Shipping weight 270 lbs with Pallet.
PLEASE NOTE: Due to the way freightquote.com words their Bills of Lading, we will no longer be allowing any shipments made through them. You can contact us for more details, but please be advised that we will not sign a freightquote.com BOL. We apologize for any inconvenience and we will do everything we can to assist in finding the best freight price we can.
All others will be charged according to their location
Sales tax of 8% will be charged to New York State residents and businesses.
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
