Reuland Type COTO 0075E-1BAN-0070 3 Ph 7.5 HP Motor 1200 RPM, 284UDZ, 460 V Used
Reuland Type COTO 0075E-1BAN-0070 3 Ph 7.5 HP Motor 1200 RPM, 284UDZ, 460 V Used
Industrial
Motor For sale is a Reuland Type COTO 0075E-1BAN-0070 Long Shaft, 3 Phase, 7.5 HP, 1200 RPM, 284 UDZ Frame, 460 Volt Only Motor. The motor may have been used by the previous owner based only on the fact that...
$199.99
×
Freight Quote
- Category: Industrial
Motor

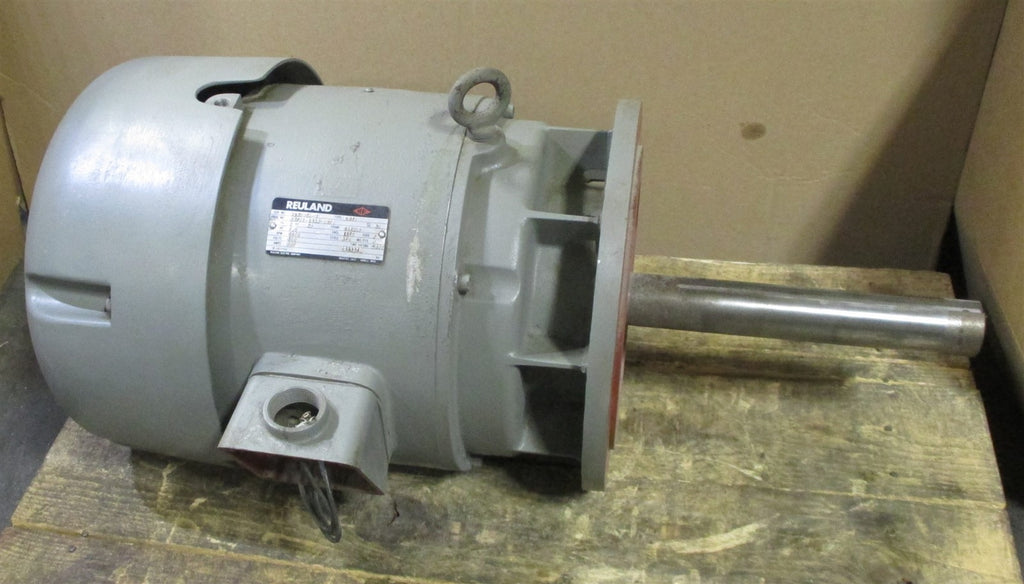

For sale is a Reuland Type COTO 0075E-1BAN-0070 Long Shaft, 3 Phase, 7.5 HP, 1200 RPM, 284 UDZ Frame, 460 Volt Only Motor. The motor may have been used by the previous owner based only on the fact that the electrical conduit box cover is missing. No other obvious signs of mounting show on the unit. Some light signs of shelf wear, marking, stickering, taping and/or discoloration may show as well from the previous owner and transport but nothing that will impact performance. The key for the keyway is not included. Overall the motor remains in very good condition.
Shaft OD: 1.95"
Shipping:
Shipping costs will depend on location. Please contact us for shipping costs prior to bidding. When requesting a shipping quote, please include your zipcode and whether the unit will be delivered to a residence or a business with a truck high dock or forklift.
Local pickup in Rochester, NY 14606 is free
The buyer can set up freight themselves (a packaging fee of dollars will be added to the total) or we can provide a competitive quote to the buyer.
Shipping weight 310 lbs with Pallet.
PLEASE NOTE: Due to the way freightquote.com words their Bills of Lading, we will no longer be allowing any shipments made through them. You can contact us for more details, but please be advised that we will not sign a freightquote.com BOL. We apologize for any inconvenience and we will do everything we can to assist in finding the best freight price we can.
All others will be charged according to their location
Sales tax of 8% will be charged to New York State residents and businesses.
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
