Scully Jone 18101 SJ-9C Adjustable Spindle Adapter w/ 3/4-12 17252 SJ-9D New

Industrial

Spindle Adapter You are bidding on a Scully Jones 18101 SJ-9C Adjustable Spindle Adapter with 3/4-12 17252 SJ-9D Nut. Item is new and in great condition but may show some signs of light shelf wear from the previous owner. Shank...

$13.24

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Spindle Adapter

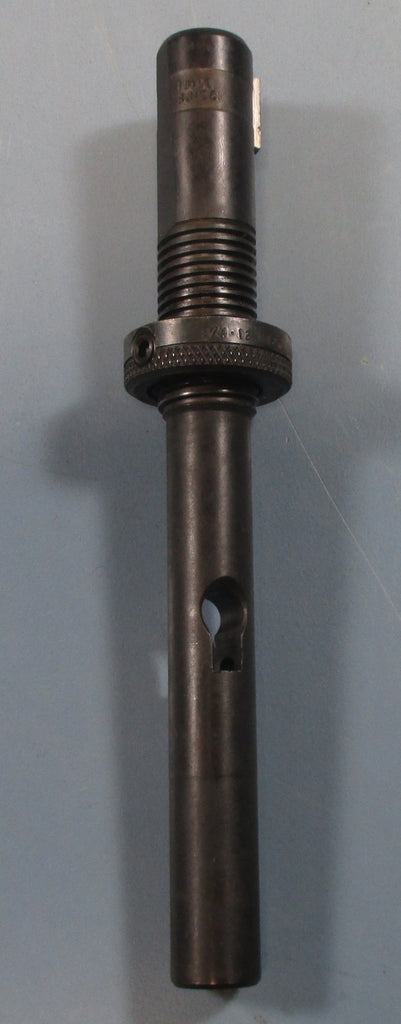

You are bidding on a Scully Jones 18101 SJ-9C Adjustable Spindle Adapter with 3/4-12 17252 SJ-9D Nut. Item is new and in great condition but may show some signs of light shelf wear from the previous owner.
Shank Size: 0.75 inch
Morse Taper: 1
Extension Beyond the Threads: 4 inch
Shank Length: 3.0 inch
Flat Length: 1.5 inch
Ext. Dia: 0.62 inch
Adjust Length: 0.88 inch

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
