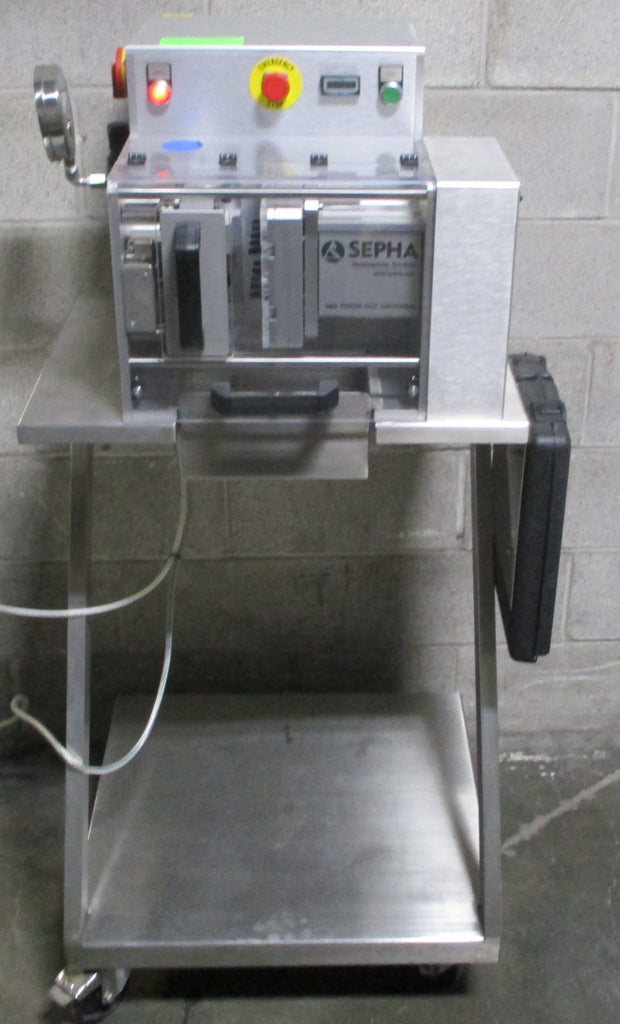

Sepha PRESS-OUT Universal Mini Deblistering Machine 110V AC 2A Mfg in 2003
Industrial
Deblistering MachineFor sale is a Sepha Press Out Universal Mini Deblistering Machine 110V AC 2A Mfg in 2003. Item was in good used condition, running when taken out of service. It is unkown if item is complete and contains all pieces...
Freight Quote
- Category: Industrial
The Sepha Press-Out Universal Mini (2003-era vintage) is a compact, benchtop, fully automated deblistering machine.
Key Features & Capabilities
Versatile Packaging Compatibility: Handles standard push-through, child-resistant, senior-friendly, peelable, paper-backed, and heavy-gauge alu/alu packs.
Gentle Product Handling: Uses a discrete cutting and pressing mechanism that minimizes physical pressure on delicate oral solid doses (OSD), preventing product cracking or crushing.
Zero Foil Contamination: The machine ensures the foil backing layer remains attached to the waste blister card while the recovered medicine is funneled into a separate collection drawer.
cGMP Compliant: Built using sanitary stainless steel with an open-frame layout for quick line clearance, effortless cleaning, and straightforward validation.
Technical Specifications
| Parameter | Specification |
| Operation Type | Fully Automatic (Magazine stack feed) |
| Operating Speed | Up to 16 blister packs per minute (Variable speed control) |
| Compatible Layouts | All (Linear, diagonal, matrix, and multi-product formats) |
| Minimum Pack Dimensions | 82 mm (L) × 33 mm (W) |
| Maximum Pack Dimensions | 140 mm (L) × 105 mm (W) |
| Tooling Changeover Time | ~5 minutes (Fast, low-cost tooling setup) |
| User Interface / Control | Allen Bradley PLC with a 3-inch Monochrome Touchscreen HMI (Note: Modern post-2010 variants feature a 4" color LCD display) |
| Construction Material | Grade 316 Stainless Steel (product-contact zones and receiver tray); Grade 304 Stainless Steel (outer casing) |
| Electrical Utilities | 110 / 230V Single Phase AC, 50/60 Hz |
| Pneumatic Utilities | Air Supply of 6 Bar (approx. 90 psi) |
| Machine Dimensions | 660 mm (L) × 560 mm (W) × 690 mm (H) |
| Machine Weight | Approx. 80 kg (~176 lbs) net / 112.5 kg (~248 lbs) shipping |
Operating Principle
The Cutting Technology: Unlike standard roller-driven deblistering systems that forcefully crush packs to squeeze a product out, the Universal Mini utilizes a highly sophisticated mechanism. It partially cuts the foil around the perimeter of individual pockets before applying gentle, localized pressure to push the product clear.
This method is crucial for protecting fragile/friable pills and keeping hazardous foil shards out of the recovered product pool.
