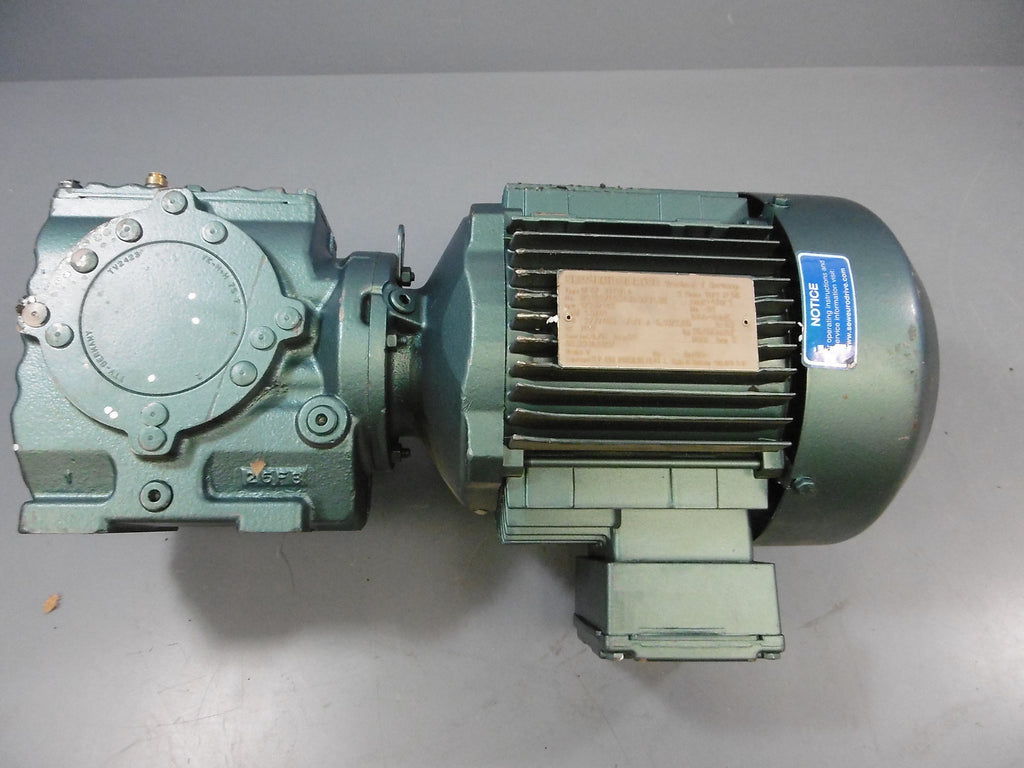

Sew Eurodrive SF47-DT90L4 3 Phase 1720/142 RPM 60HZ
Sew Eurodrive SF47-DT90L4 3 Phase 1720/142 RPM 60HZ
Industrial
Motor For sale is a Sew Eurodrive SF47-DT90L4, 3 Phase TEFC IP 56, 1720/142 RPM, 60HZ. This motor is in good overall condition with signs of light use such as light scratches on the shaft, light scrapes, grease marks and...
$122.39
×
Freight Quote
- Category: Industrial
|
Motor For sale is a Sew Eurodrive SF47-DT90L4, 3 Phase TEFC IP 56, 1720/142 RPM, 60HZ. This motor is in good overall condition with signs of light use such as light scratches on the shaft, light scrapes, grease marks and small nicks.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
