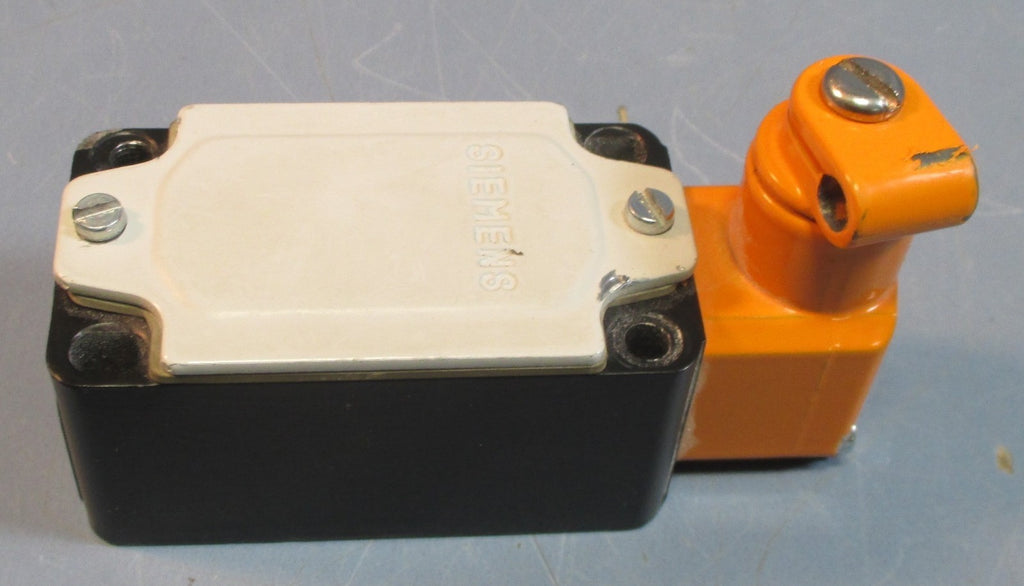

Siemens 3SE2 120-1WW Lever Limit Switch 90 Degree Action 1NO+1NC Used

Industrial

Limit Switch For sale is a Siemens 3SE2 120-1WW Lever Limit Switch 90 Degree Action 1NO+1NC. The switch is used and came from a working environment. The action is good and the switch is believed in good working condition. Some...

$12.79

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Limit Switch

For sale is a Siemens 3SE2 120-1WW Lever Limit Switch 90 Degree Action 1NO+1NC. The switch is used and came from a working environment. The action is good and the switch is believed in good working condition. Some signs of wear, scratching and/or discoloration may show from the previous owner. None of these slight imperfections that show will impact the performance of the product. Overall the switch remains in very good, ready to use condition.
IEC/EN 60947-5-1
50Hz
Ue=500V
AC15 230V 6A
Uimp=6kV
A600 Q600
Type 12K Encl

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
