SMC MGCLB32TN-250 Slide Guided Cylinder Bearing 145PSI 1.0 Mpa
SMC MGCLB32TN-250 Slide Guided Cylinder Bearing 145PSI 1.0 Mpa
Industrial
Cylinder Slide For sale is a SMC MGCLB32TN-250, Slide Guided Cylinder Bearing, 145PSI, 1.0 Mpa. This appears to be in good overall condition with signs of either light use or shelf wear. There are light scratches, light scuffs, grease marks and torn labels. The dust caps may be...
$280.79
×
Freight Quote
- Category: Industrial
Cylinder Slide

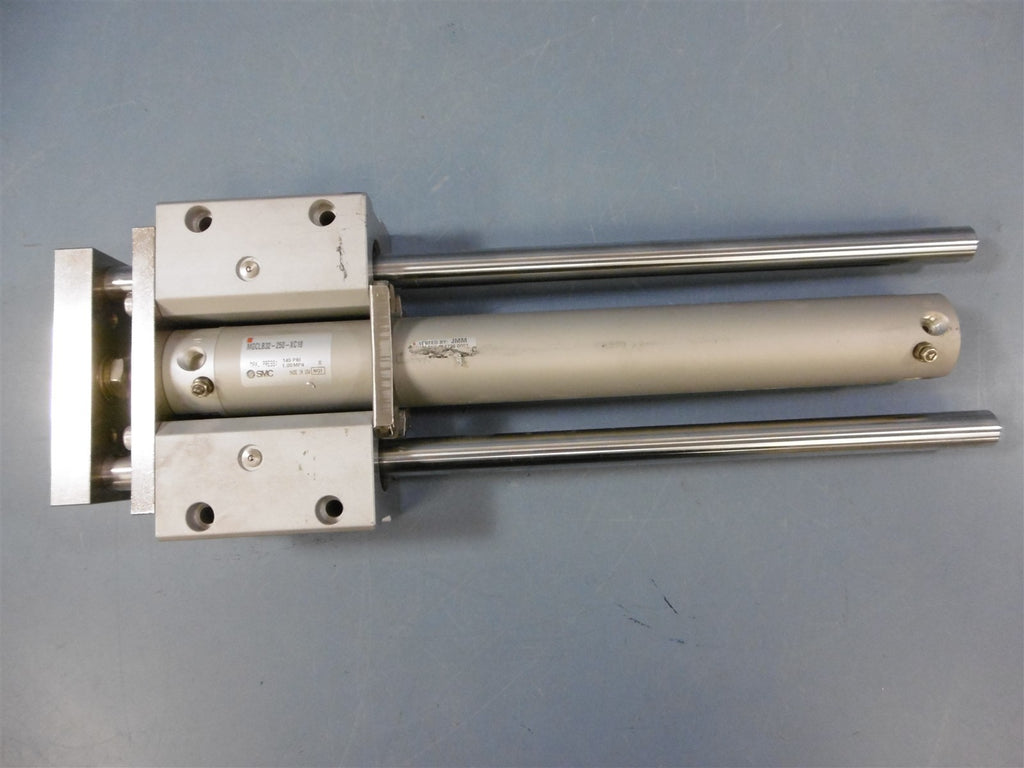

For sale is a SMC MGCLB32TN-250, Slide Guided Cylinder Bearing, 145PSI, 1.0 Mpa. This appears to be in good overall condition with signs of either light use or shelf wear. There are light scratches, light scuffs, grease marks and torn labels. The dust caps may be missing and the exact item you receive may differ very slightly due to having multiples in stock.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
