SMC VXZ242GZ2AL Media Valve w/ 3/4" FPT 0.7MPa and 15mm Orifice New
SMC VXZ242GZ2AL Media Valve w/ 3/4" FPT 0.7MPa and 15mm Orifice New
Industrial
Media Valve For sale is a SMC VXZ242GZ2AL Media Valve with 3/4" (0.71" measured thread ID) FPT, 0.7 MPa and 15 mm Orifice. The valve is new and still in the original bubble wrap package. The packaging may show some...
$107.99
×
Freight Quote
- Category: Industrial
Media Valve

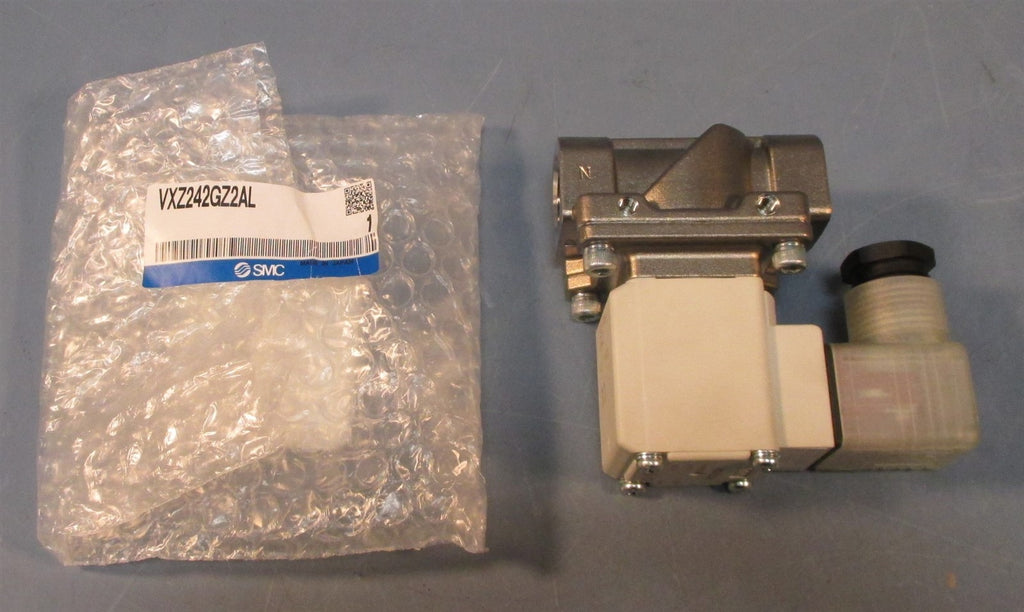

For sale is a SMC VXZ242GZ2AL Media Valve with 3/4" (0.71" measured thread ID) FPT, 0.7 MPa and 15 mm Orifice. The valve is new and still in the original bubble wrap package. The packaging may show some very light cosmetic imperfections from the previous owner and transport. The valve remains in excellent, clean condition overall.
24 VDC
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
