Sparks Belting MF BP290 Quiet Weave 41 FT LG x 21-1/2 IN Wd Conveyor Belt
Sparks Belting MF BP290 Quiet Weave 41 FT LG x 21-1/2 IN Wd Conveyor Belt
Industrial
Conveyor For sale is a Sparks Belting Company MF BP290 Quiet Weave 41 Foot Long and 21-1/2 Inch Wide Ended Conveyor Belt Section. The unit is new but may show some light cosmetic imperfections from the previous owner and transport. ...
$169.19
×
Freight Quote
- Category: Industrial
Conveyor

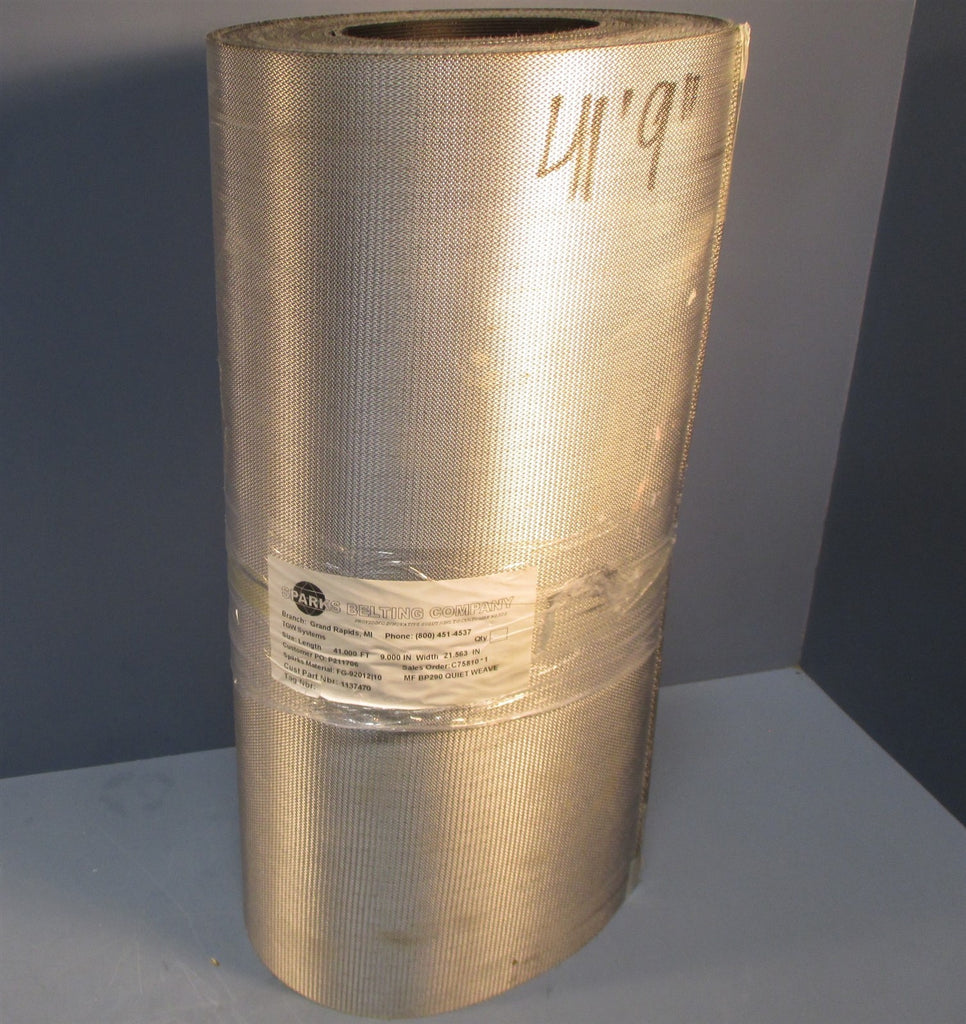

For sale is a Sparks Belting Company MF BP290 Quiet Weave 41 Foot Long and 21-1/2 Inch Wide Ended Conveyor Belt Section. The unit is new but may show some light cosmetic imperfections from the previous owner and transport. None of these slight imperfections will impact performance. Overall the conveyor remains very good condition and comes as shown and with what is seen in the photos.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
International Buyers – Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
