Sprocket Gear 50 - 30 Tooth 1-3/16 Bore 50-30, 6.25" Diameter Tooth Tip to Tooth

Industrial

Sprocket / Gear This is a Sprocket Gear 50-30 Tooth 1-3/16" Bore 6.25" Diameter Tooth Tip to Tip. The item may have been used by the previous owner and is not with the original packaging. The sprocket appears in excellent...

$17.91

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Sprocket / Gear

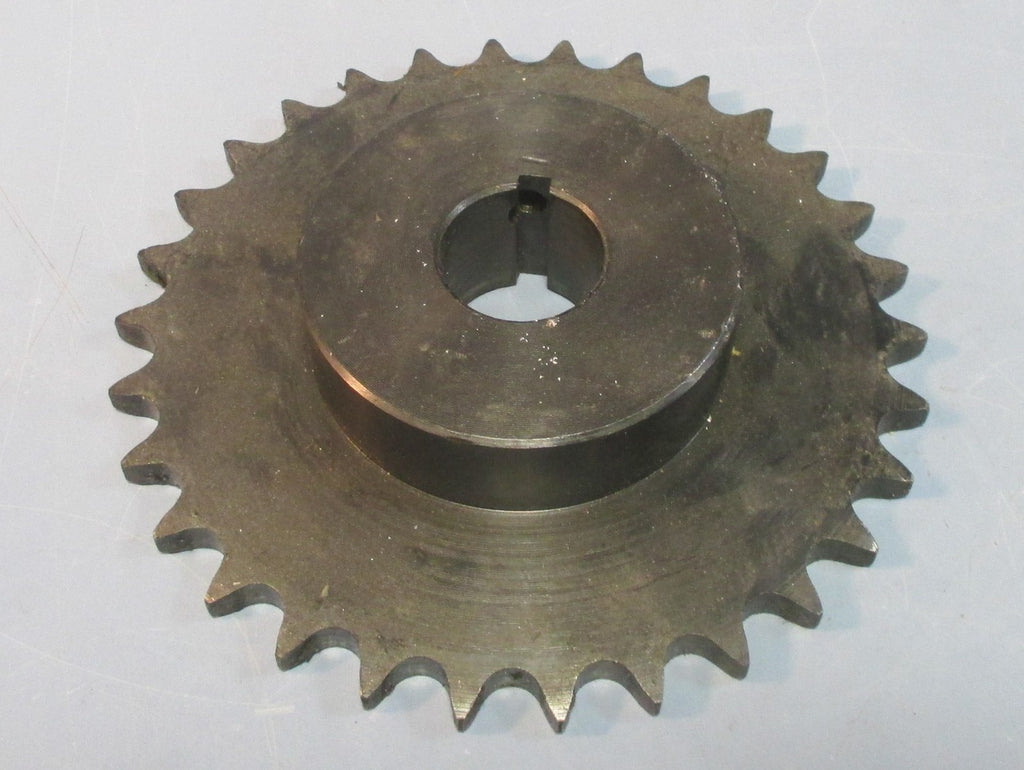

This is a Sprocket Gear 50-30 Tooth 1-3/16" Bore 6.25" Diameter Tooth Tip to Tip. The item may have been used by the previous owner and is not with the original packaging. The sprocket appears in excellent overall condition. One of the set screws is missing and one remains. Some light signs of wear, use and/or discoloration may appear from the previous owner.
Diameter at tooth valleys: 5-9/16"

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
