Standard Snap Gauge/Gage No. 9 Range 2" to 2-1/4" 2.119-2.124

Industrial

Snap Gauge You are bidding on one Standard Snap Gauge (No. 9). The snap gauge is used and it does not come with its original packaging. There are some scratches and other markings present on the snap gauge as a result...

$12.79

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Snap Gauge

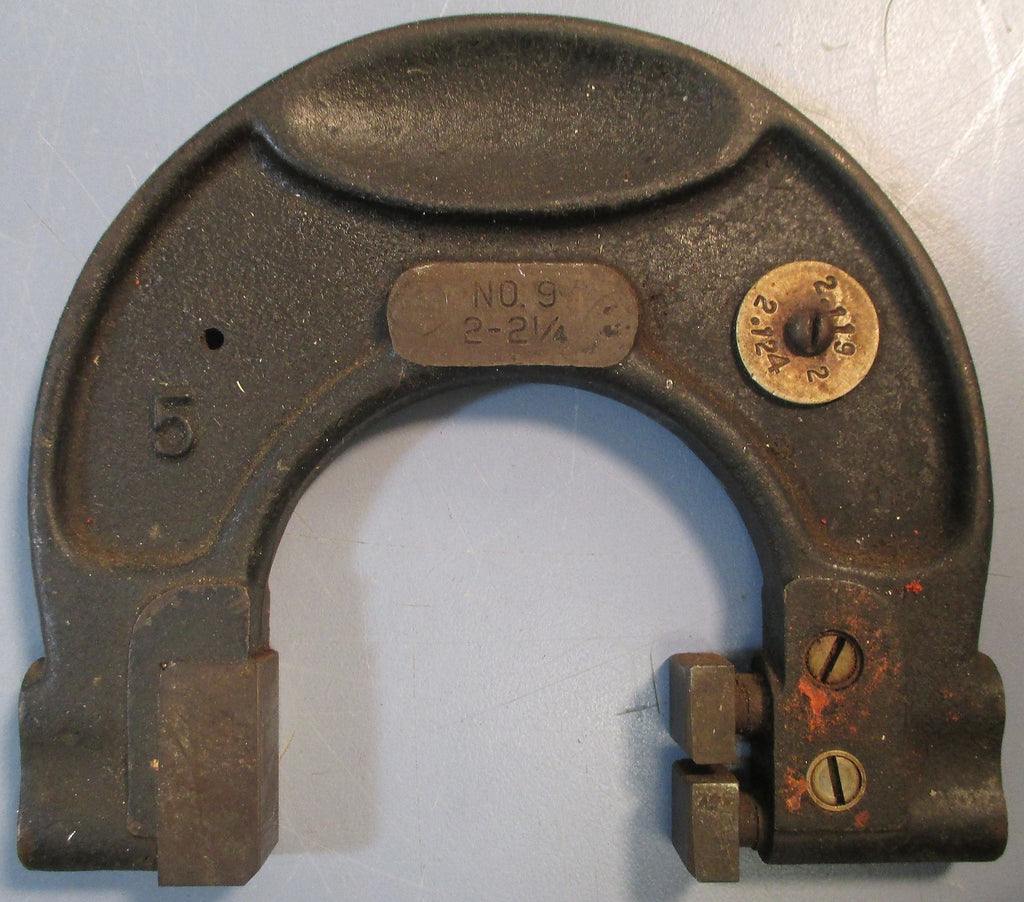

You are bidding on one Standard Snap Gauge (No. 9). The snap gauge is used and it does not come with its original packaging. There are some scratches and other markings present on the snap gauge as a result of shelf wear and from prior use. See pictures for details.

2" to 2-1/4"

2.119-2.124

Shipping:

Shipping represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
