Stober K302VG0280MT20B 27.9:1 Ratio ServoFit Precision Gearhead Gear Reducer New
Stober K302VG0280MT20B 27.9:1 Ratio ServoFit Precision Gearhead Gear Reducer New
Industrial
Gear Reducer For sale is a Stober Drives K302VG0280MT20B ServoFit Precision Gearhead 27.9:1 Ratio Gear Reducer. The unit appears to be new showing no signs of mounting or connection. Some light signs of shelf wear and/or discoloration may show from...
$683.99
×
Freight Quote
- Category: Industrial
Gear Reducer

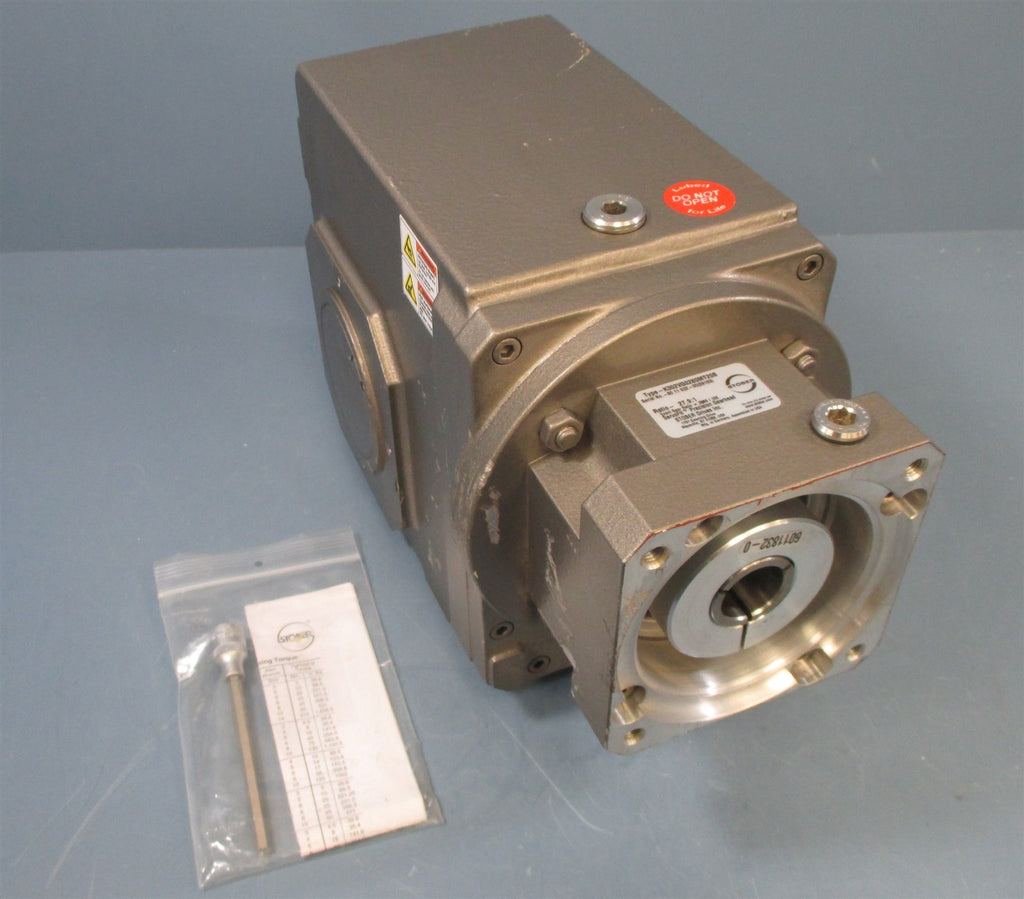

For sale is a Stober Drives K302VG0280MT20B ServoFit Precision Gearhead 27.9:1 Ratio Gear Reducer. The unit appears to be new showing no signs of mounting or connection. Some light signs of shelf wear and/or discoloration may show from the previous owner but nothing that will impact performance. Overall the reducer remains in excellent condition.
Shaft OD: 1-1/4"
Bore ID: 0.935"
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
