Textron AccuDrive 20:1 Ratio Gear Reducer Gearbox RG251020LSAE03DHLDK New
Textron AccuDrive 20:1 Ratio Gear Reducer Gearbox RG251020LSAE03DHLDK New
Industrial
Gear Reducer For sale is a Textron AccuDrive 20:1 Ratio Gear Reducer Gearbox RG251020LSAE03DHLDK. The reducer appears to be new with no consistent signs of mounting, connection or use. The unit is no longer on the original package and may...
$188.99
×
Freight Quote
- Category: Industrial
Gear Reducer

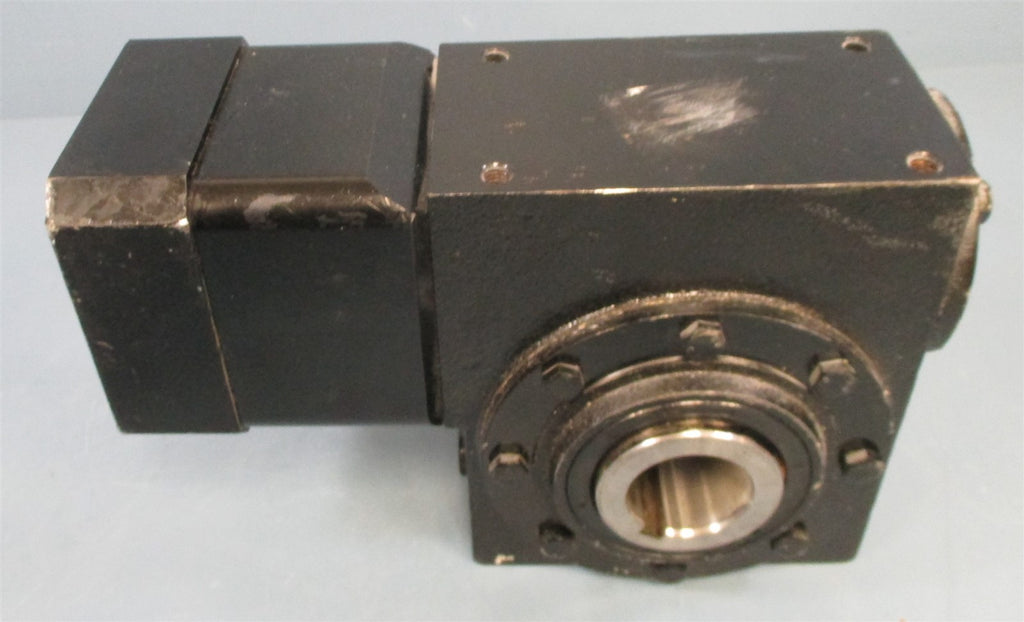

For sale is a Textron AccuDrive 20:1 Ratio Gear Reducer Gearbox RG251020LSAE03DHLDK. The reducer appears to be new with no consistent signs of mounting, connection or use. The unit is no longer on the original package and may show some signs of shelf wear, stickering, discoloration and other cosmetic imperfections from the previous owner and transport. None of these slight imperfections will impact performance. Overall this reducer remains in very good condition.
Through Bore ID: 1.6875" / 1-11/16"
End Bore ID: 0.75" / 3/4"
Base Mount Bolt Centerpoints: 5-1/8" x 3"
Flange End Bolt Mount Centerpoints: 3-1/4"
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
