Toko SWE30-12F Output: 12V 2.5A Power Supply ACin: 50/60Hz Used
Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.
Toko SWE30-12F Output: 12V 2.5A Power Supply ACin: 50/60Hz Used
Industrial

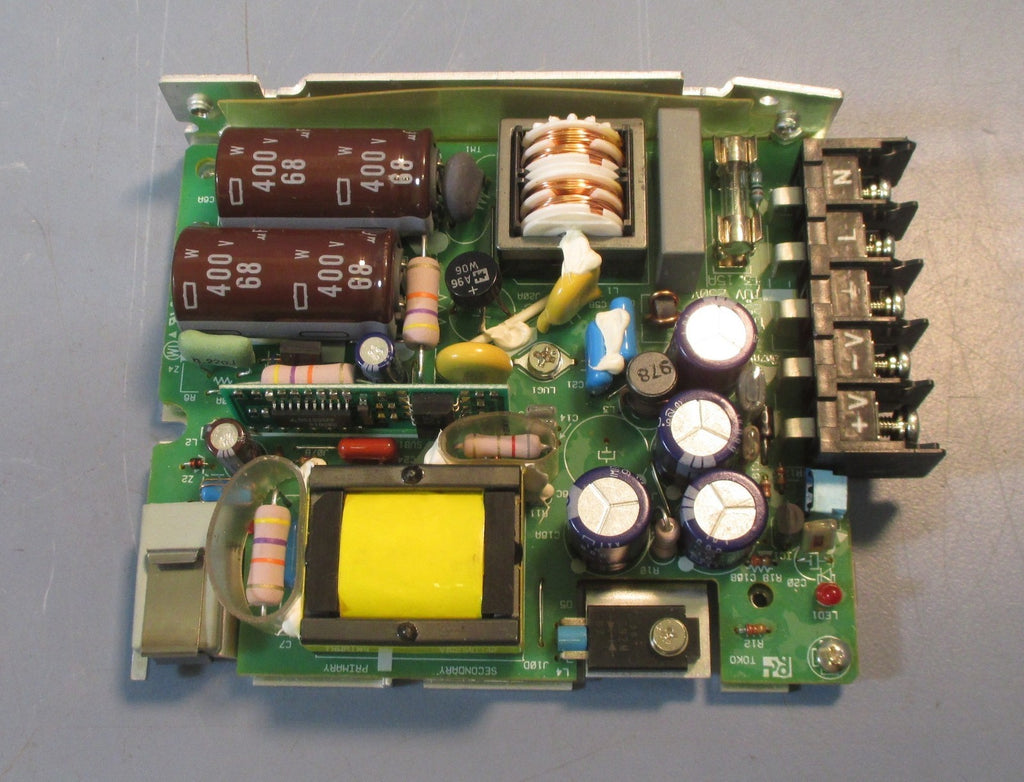

Power Supply You are bidding on a Toko SWE30-12F Power Supply with 12V 2.5A Output. Item is used and may show some signs of use from the previous owner. It is untested and functionality is unknown but it came from...
$16.12
×
Freight Quote
- Category: Industrial
|
Power Supply You are bidding on a Toko SWE30-12F Power Supply with 12V 2.5A Output. Item is used and may show some signs of use from the previous owner. It is untested and functionality is unknown but it came from a working environment. Overall the power supply appears in good condition. A small burn mark is on the bottom side of the board where it appears someone had connected a wire or something at some point.
Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
