We are selling a complete and integrated Trovato 600C FS (Flying Shutter variant of the 600C model) thin film vacuum deposition system. This highly specialized system is designed specifically for R&D in organic optoelectronics, including OLED, OPV, OTFT, OLED SSL,...

$119,999.00
In Inventory:
1
×

Freight Quote

  • Category: Industrial

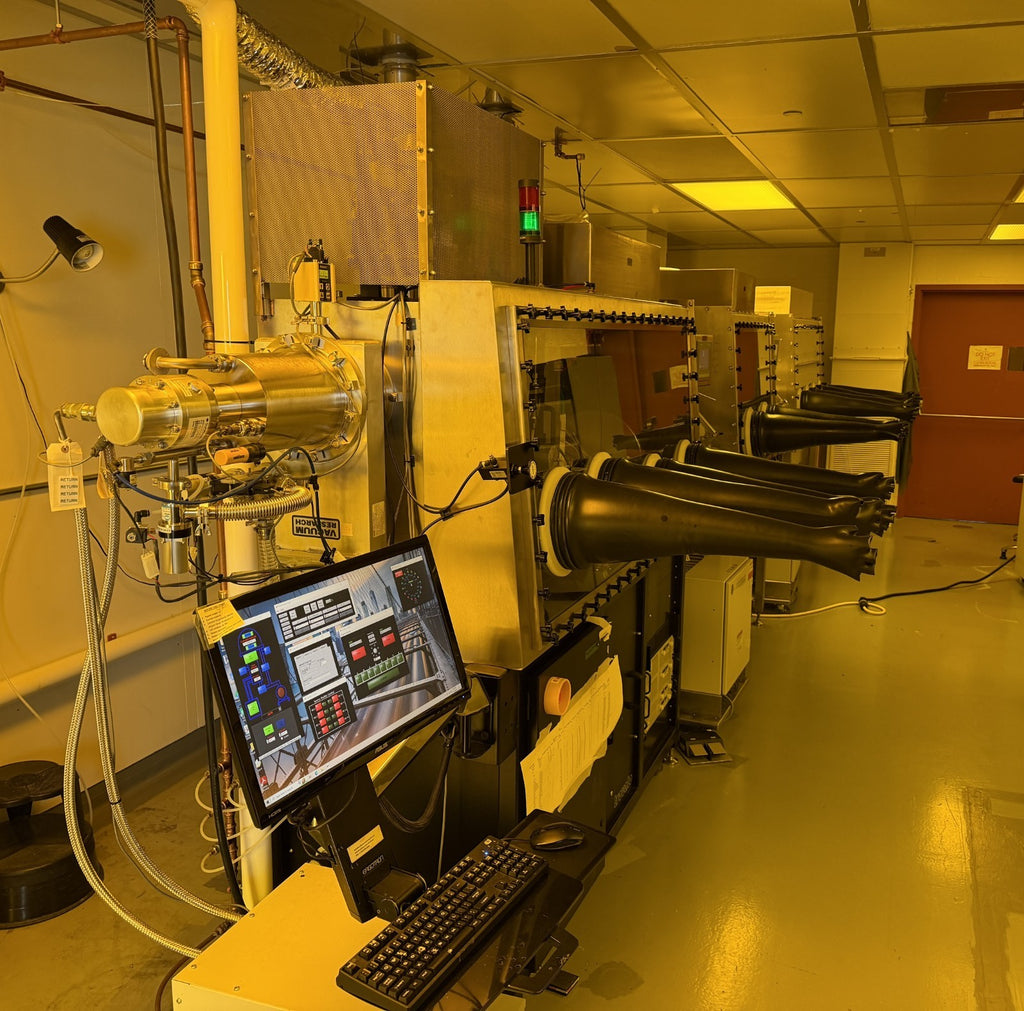

We are selling a complete and integrated Trovato 600C FS (Flying Shutter variant of the 600C model) thin film vacuum deposition system. This highly specialized system is designed specifically for R&D in organic optoelectronics, including OLED, OPV, OTFT, OLED SSL, and Solar applications. With the ability to produce multiple complex, unique devices on a single pump down, this system is a powerhouse for thin-film R&D.

This system is powered on and ready to be viewed in action. Please contact us for an opportunity to see this in person.

Chamber & Vacuum Specifications:

Dimensions: Features a large 600mm X 450mm X 750mm vacuum chamber.

High Vacuum: Driven by a cryogenic pump (maintained below 20 Kelvin), capable of reaching the 10−8 torr range under optimal conditions, monitored by a HORNET ion gauge.

Automation: Features fully automated pump sequencing and an automated cryo regen cycle (~5 hours).


Glovebox Integration:

The system features an integrated glovebox with low profile chamber access to ensure air-free sample transfers.

    Includes a vacuum antechamber.

    Maintains an ultra-pure environment of <1ppm O2 and H2O.

    Features a built-in work station for sample prep.

    Additional glovebox sections are currently attached and available for secondary operations.


Evaporation Sources & Power:

Capacity: Built with 20 source stations. It is currently configured with 16 active thermal evaporation sources, 8 of which feature individual local shutters.

Power Supplies: Comes standard with two 3.3kw and two 1.5kw power supplies  (utilizing a four-bank TDK-Lambda setup).

Co-Evaporation: QUAD co-deposition is a standard feature. The system handles automated selection of evaporation sources.


Substrate Handling & Patterning:

Capacity: The Flying Shutter fixture accommodates 8 substrates (metal, organic & variant) standard. It is optimized for 2.5" x 2.5" substrates.

Uniformity: Utilizes a rotating fixture (typically run at 80% speed) to ensure optimized uniformity and consistent deposition results.

Control: Features automated substrate fixture control and automated indexing of masks directly during the process, allowing users to switch between organic and metal cathode masks without breaking vacuum.


Monitoring & Software Interface:

Interface: Fully integrated computer control with a simple, easy to use operator interface.

Monitoring: Equipped with 4 Crystal Rate Monitors standard (upgradeable) for in situ monitoring.

Programming: Features an automated multi layer thin film deposition program.

Variant Studies: Offers sophisticated variant studies capability, allowing operators to easily control layer thickness and constituent material ratio(s).


Shipping & Logistics:

Due to the size and weight of the 600mm x 450mm x 750mm chamber and the integrated glovebox attachments, this item must ship via specialized freight. Plese contact us for local rigging option for removal.

Thank you for looking and please let us know if you have any questions.
