TSI Thermoflo Model 67 Linear Signal Conditioner 0-200 SCFM
Industrial
Signal Conditioner For sale is one TSI Thermoflo linear signal conditioner, model 67. Item is used, but in good condition. Unit shows signs of cosmetic wear, including scratches and scrapes, but nothing that will affect the unit's function. Unit powers...
$31.99
×
Freight Quote
- Category: Industrial
Signal Conditioner

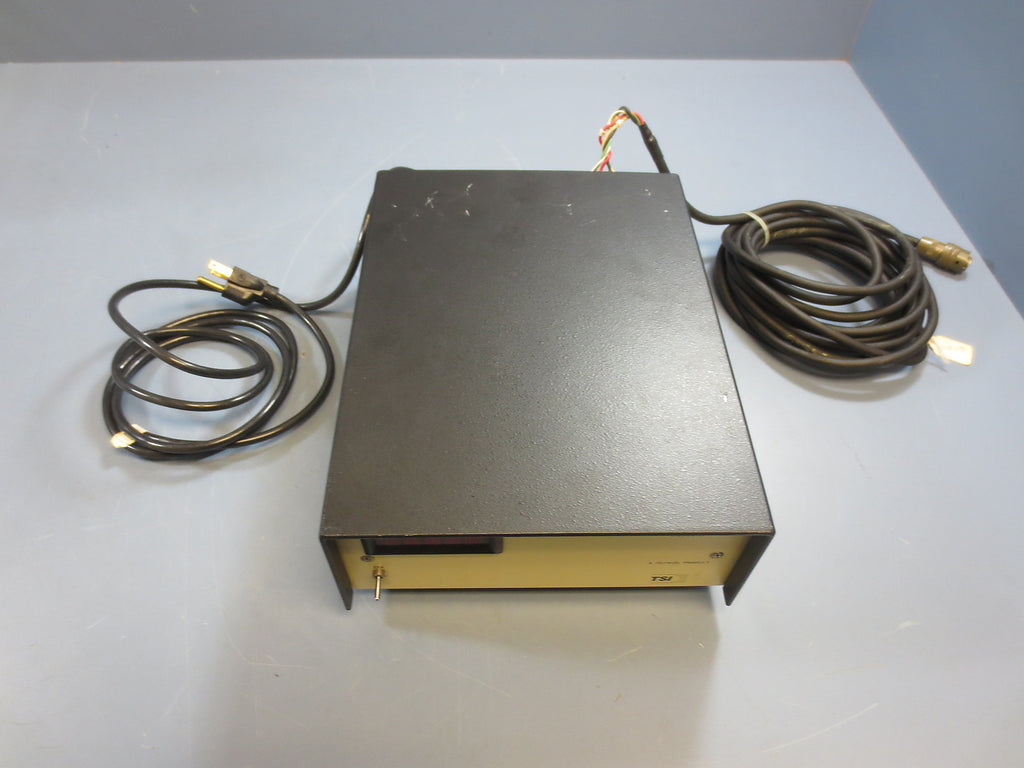

For sale is one TSI Thermoflo linear signal conditioner, model 67. Item is used, but in good condition. Unit shows signs of cosmetic wear, including scratches and scrapes, but nothing that will affect the unit's function. Unit powers on, but we are unable to test it further.
Range: 0-200 SCFM
Output: 0-10 VDC
Transducer Model: 2017
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
