Tsubaki Single Row Tapered Sprocket Model H60BTL11 11 Teeth 3/4" Pitch NWOB

Industrial

Tapered Sprocket You are bidding on one Tsubaki Single Row Tapered Sprocket Model H60BTL11. The sprocket is new but it does not come with any of its original packaging. There are some small scratches present on the sprocket as a...

$14.39

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Tapered Sprocket

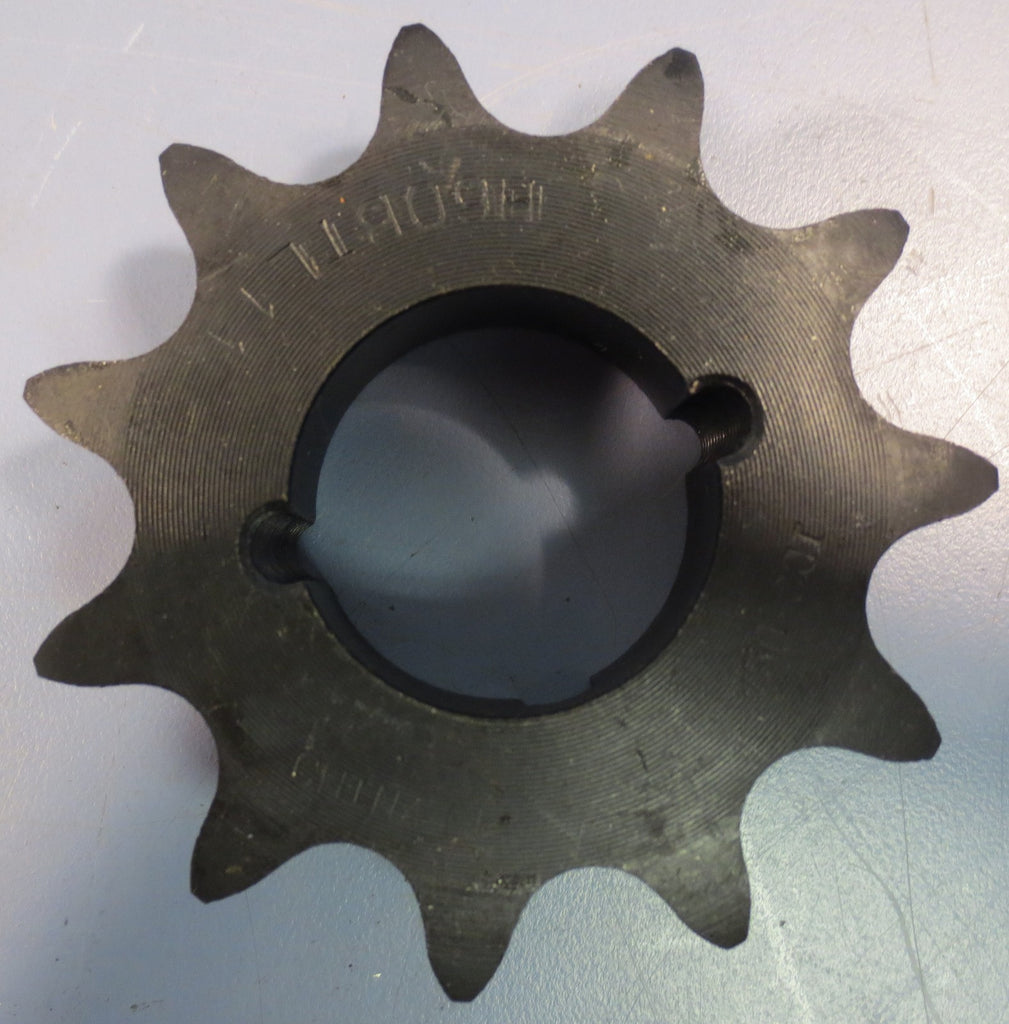

You are bidding on one Tsubaki Single Row Tapered Sprocket Model H60BTL11. The sprocket is new but it does not come with any of its original packaging. There are some small scratches present on the sprocket as a result of shelf wear.

11 Teeth

3/4" Pitch

3" OD

1-13/16" Hub Diameter

7/8" Width

Approximate Bore Diameter Range: 1-1/4"-1-3/8"

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
