Unitary Products Group GF2060H24G 500 PSIG Full Cased A-Coil

Industrial

Condensor Coil You are bidding on one Unitary Products Group A Coil, model GF2060H24G. Item is used, but in good condition. The unit shows some signs of cosmetic wear including scratches and scrapes, but nothing that will affect the unit's...

$199.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Condensor Coil

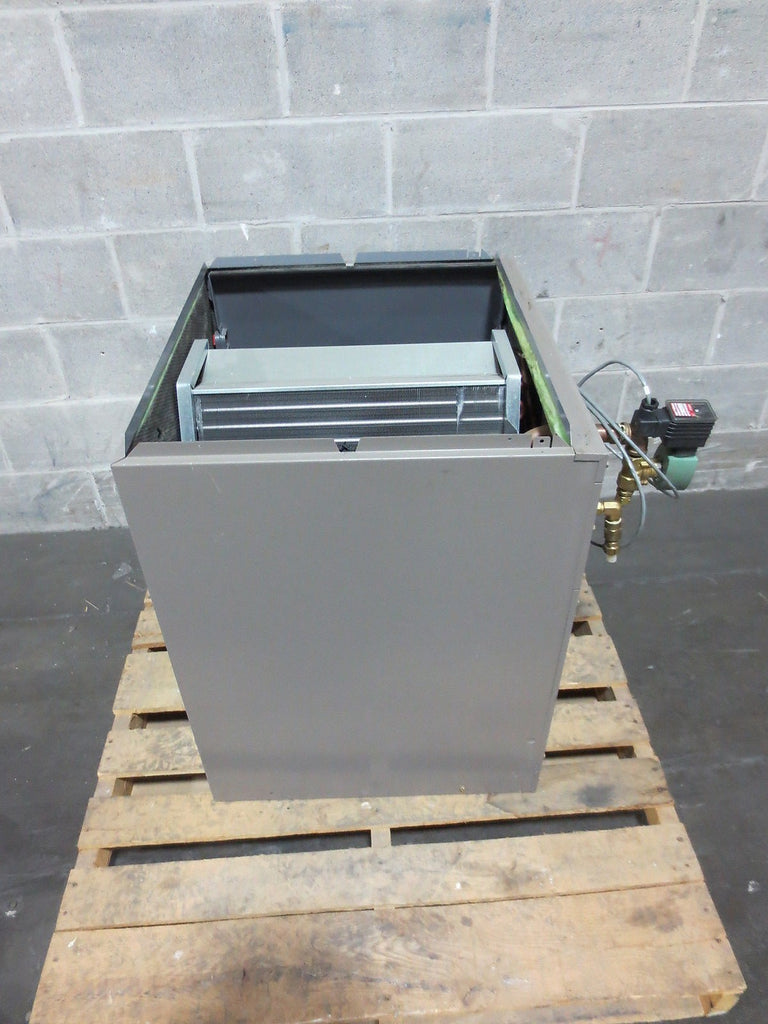

You are bidding on one Unitary Products Group A Coil, model GF2060H24G. Item is used, but in good condition. The unit shows some signs of cosmetic wear including scratches and scrapes, but nothing that will affect the unit's function. The coil has some bent slits to it, see pictures for details, sold as-is.

Model No.: GF2D060H24G
Design Pressure: 500 PSIG
Fact. Test Pressure: 500 PSIG
Refrigerant: R22 or R410A

Shipping:

Shipping costs will depend on location. Please contact us for shipping costs prior to bidding. When requesting a shipping quote, please include your zipcode and whether the unit will be delivered to a residence or a business with a truck high dock or forklift.

Local pickup in Rochester, NY 14606 is free

The buyer can set up freight themselves or we can provide a competitive quote to the buyer.

Shipping weight 160 lbs.

PLEASE NOTE: Due to the way freightquote.com words their Bills of Lading, we will no longer be allowing any shipments made through them. You can contact us for more details, but please be advised that we will not sign a freightquote.com BOL. We apologize for any inconvenience and we will do everything we can to assist in finding the best freight price we can.

All others will be charged according to their location

Sales tax of 8% will be charged to New York State residents and businesses.

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
