Used Allen Bradley AC Drive 1336S-BRF75-AN-EN Series A 3 Phase 7.5HP
Used Allen Bradley AC Drive 1336S-BRF75-AN-EN Series A 3 Phase 7.5HP
Industrial
AC Drive For sale is a Used Allen Bradley AC Drive 1336S-BRF75-AN-EN, Series A, 3 Phase, 7.5HP. This ac drive appears to have been either lightly used or subjected to light shelf wear. There is no damage present although this item does show dust...
$165.59
×
Freight Quote
- Category: Industrial
AC Drive

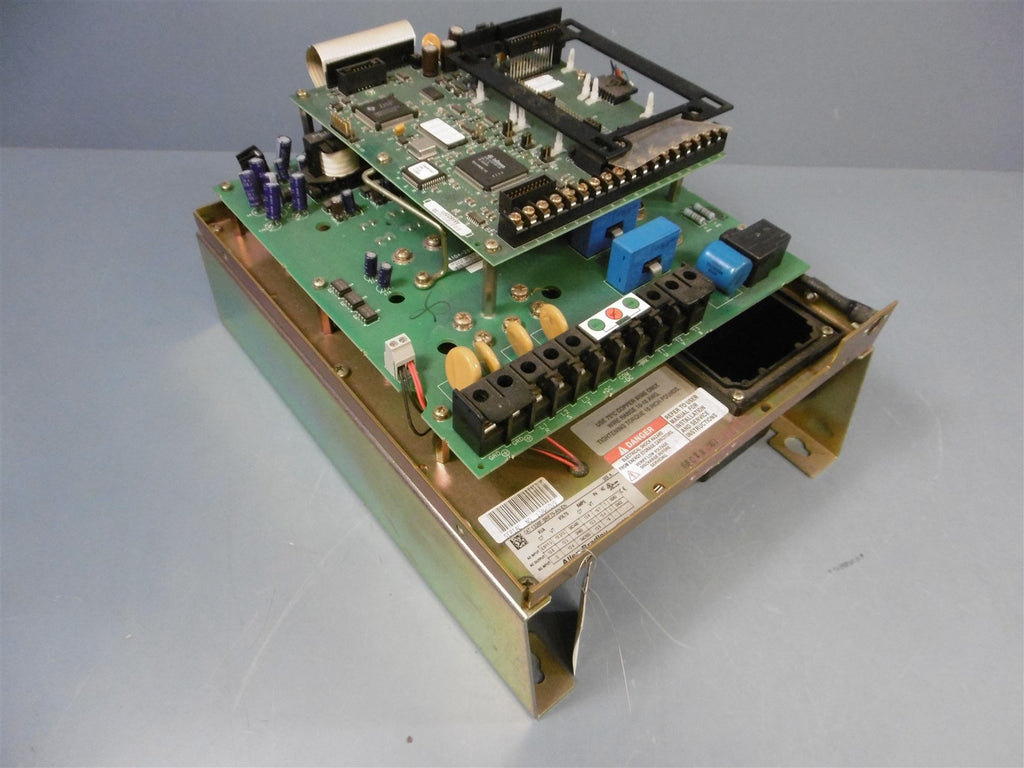

For sale is a Used Allen Bradley AC Drive 1336S-BRF75-AN-EN, Series A, 3 Phase, 7.5HP. This ac drive appears to have been either lightly used or subjected to light shelf wear. There is no damage present although this item does show dust accumulation, light scratches and grease marks. Overall the condition of this drive is good as there is no major damage or signs of heavy use. There is a fold on the ribbon (pictured)
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
