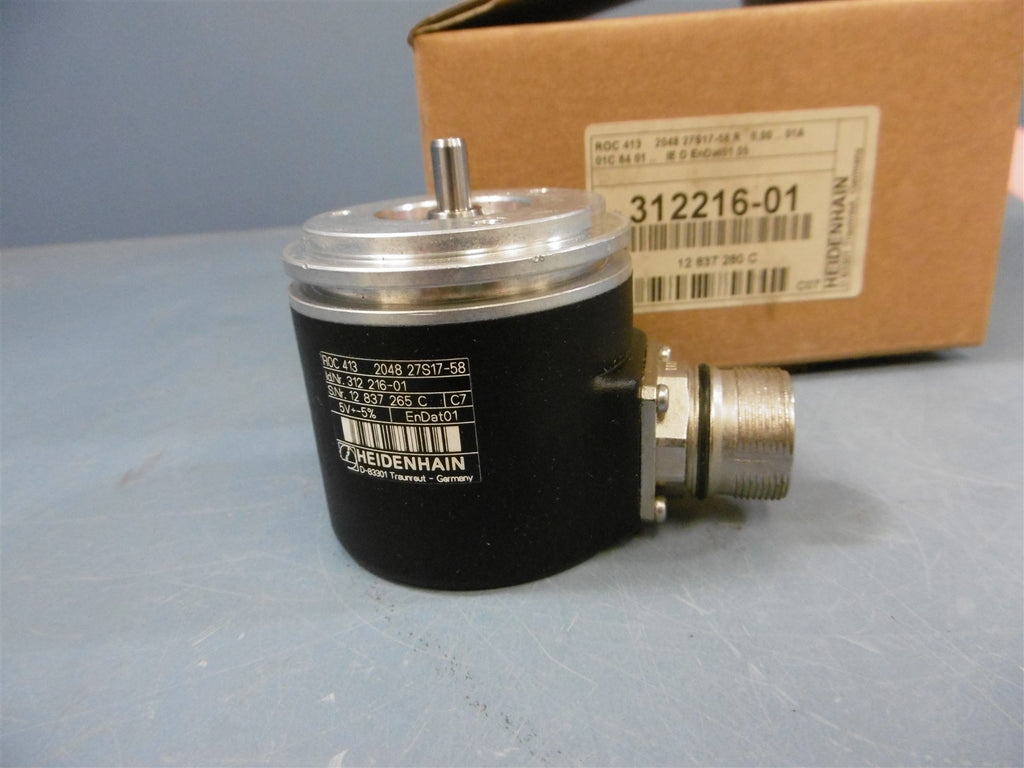

Used Heidenhain 312216-01 ROC 413 Shaft Encoder 6MM 5VDC
Used Heidenhain 312216-01 ROC 413 Shaft Encoder 6MM 5VDC
Industrial
Encoder For sale is a Used Heidenhain 312216-01, ROC 413, Shaft Encoder, 6MM, 5VDC. This encoder appears to be lightly used, it does not show signs damage or heavy wear but light scratches and small dings are present. Overall the condition of the encoder...
$179.99
×
Freight Quote
- Category: Industrial
Encoder
For sale is a Used Heidenhain 312216-01, ROC 413, Shaft Encoder, 6MM, 5VDC. This encoder appears to be lightly used, it does not show signs damage or heavy wear but light scratches and small dings are present. Overall the condition of the encoder is very good.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
