VWR Aquasonic 250HT Ultrasonic Cleaner w/ Basket No Lid 117/120V 4A 50/60Hz

Industrial

Ultrasonic Cleaner For sale is a VWR Aquasonic 250HT Ultrasonic Cleaner w/ Basket No Lid 117/120V 4A 50/60Hz. Item appears used and in good condition. Will come as shown and with what is pictured. May show minor imperfections but nothing that will impact...

$349.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Ultrasonic Cleaner

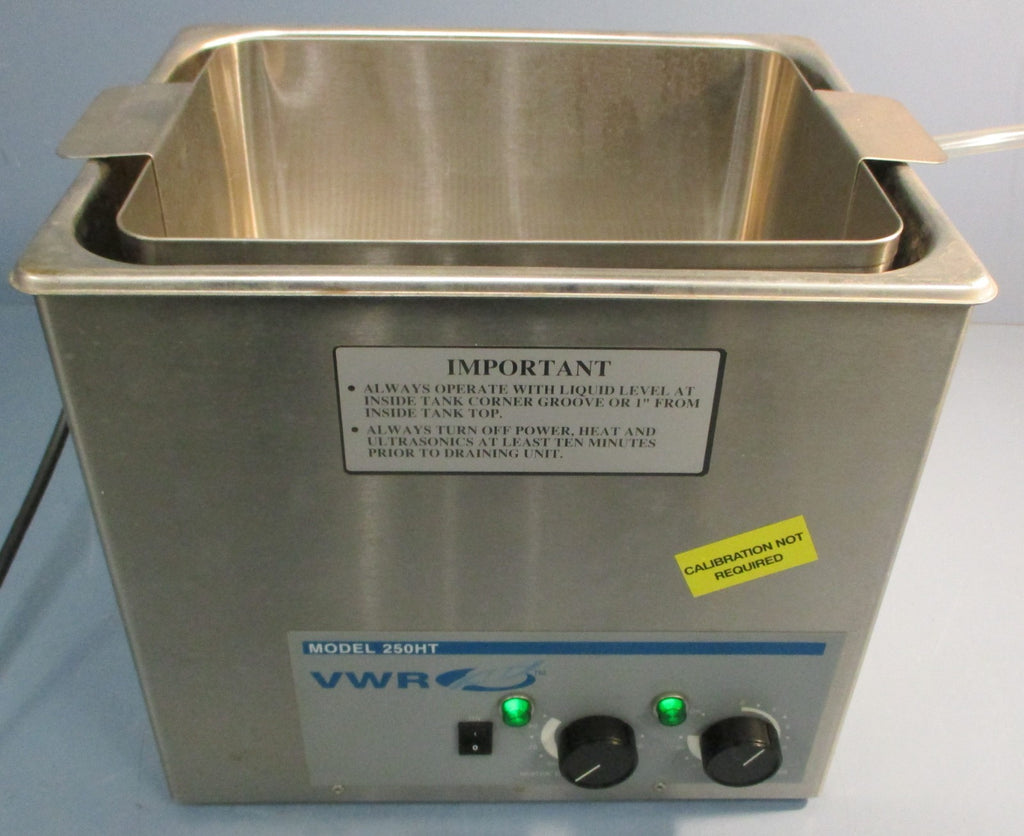

For sale is a VWR Aquasonic 250HT Ultrasonic Cleaner w/ Basket No Lid 117/120V 4A 50/60Hz. Item appears used and in good condition. Will come as shown and with what is pictured. May show minor imperfections but nothing that will impact performance.

Capacity & Dimensions

Outside Dimensions: 12.75" x 10.25" x 12"
Tank Capacity: 2.5 gallons
Tank Internal Dimensions (W x D x H): ~11.5" x 9.5" x 6"

Control Features

Timer: Mechanical / analog 30-minute dial control with a continuous-on option.
Heating System: Integrated heater element featuring an analog temperature control knob.

Construction & Design

Tank Material: Cavitation-resistant SUS stainless steel.
Housing/Cabinet: Durable, lab-grade stainless steel exterior shell.
Drainage: Built-in drain and port for easy fluid removal.

Electrical Requirements

Voltage: 117V / 120V AC
Frequency: 50/60 Hz
Current Draw: 4A – 6A

Thank you for looking and please let us know if you have any questions.

eTech Surplus

Rochester, NY

Shipping:

Charged according to location.

Please note that eBay charges sales tax, we do not.

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.

International Buyers - Please Note:

Import duties, taxes and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.

Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
