Watlow Firerod G9J-10916 120V 600W 9-1/4" Heat Element Right Angle Leads NWOB

Industrial

Heat Element For sale is a Watlow Firerod G9J-10916, 120V, 600W, 9-1/4" Rod Length Heat Element with Right Angle Leads. The element is new but no longer in the original package. Some light signs of shelf wear and/or discoloration may...

$19.19

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Heat Element

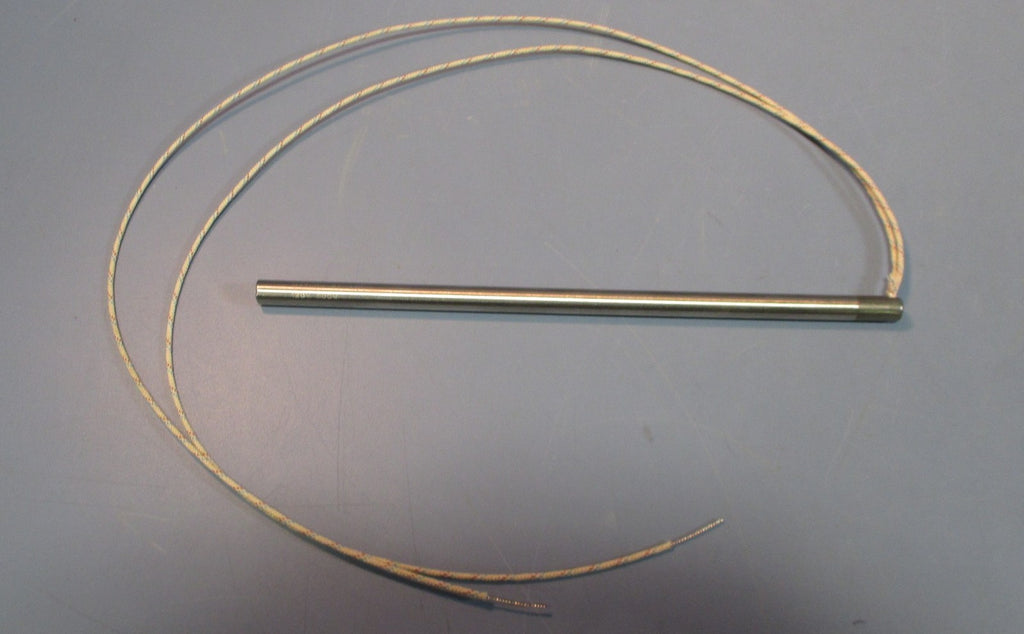

For sale is a Watlow Firerod G9J-10916, 120V, 600W, 9-1/4" Rod Length Heat Element with Right Angle Leads. The element is new but no longer in the original package. Some light signs of shelf wear and/or discoloration may show from the previous owner. None of the slight wear imperfections will impact the performance of the product. Overall the heat rod remains in very good, ready to use condition.
Rod Length After Lead Connection: 8-5/8"
Rod OD: 0.37"

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
