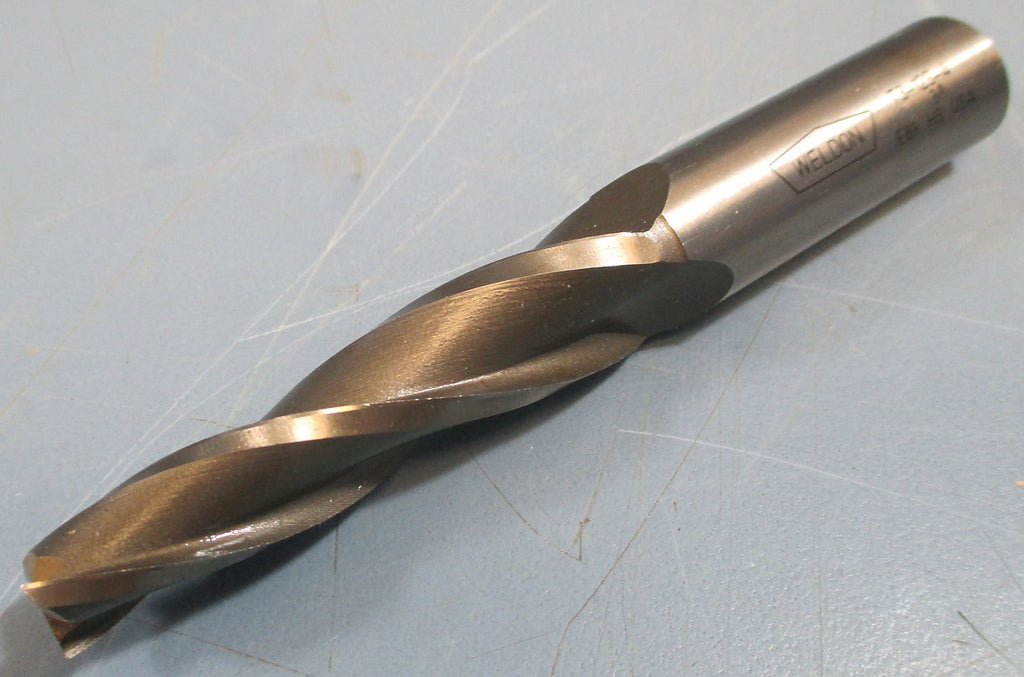

Weldon Taper End Mill Cutter, 3/8x4-3/8", 3°, T3-12S-4, 3FL, E89, HS, USA
Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.
Weldon Taper End Mill Cutter, 3/8x4-3/8", 3°, T3-12S-4, 3FL, E89, HS, USA
Industrial
End Mill Cutter For Sale is a Weldon Taper End Mill Cutter, 3/8", 3°, T3-12S-4, 3FL, E89, HS, USA. Item appears to be new and unused by previous owner. Item may show slight signs of minor scratching, discoloration and/or other signs of...
$11.19
×
Freight Quote
- Category: Industrial
|
End Mill Cutter For Sale is a Weldon Taper End Mill Cutter, 3/8", 3°, T3-12S-4, 3FL, E89, HS, USA. Item appears to be new and unused by previous owner. Item may show slight signs of minor scratching, discoloration and/or other signs of shelf wear from previous owner. The threads on the item appear to be in good condition and the cutters appear to be in excellent, sharp, ready to use shape. Item may come in a protective wax. Overall the item is in excellent, new, ready to use condition. Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
