Westinghouse MCP03150CR 15A Motor Circuit Protector Breaker w/ Aux Wiring Used
Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.
Westinghouse MCP03150CR 15A Motor Circuit Protector Breaker w/ Aux Wiring Used
Industrial
Circuit Breaker For sale is a Westinghouse MCP03150CR Style No. 2607D80G04 Motor Circuit Protector Breaker 15 Amp with Aux Wiring but no Aux Switch Sticker. The breaker is used and came from a working environment. Some light signs of use,...
$14.07
×
Freight Quote
- Category: Industrial
|

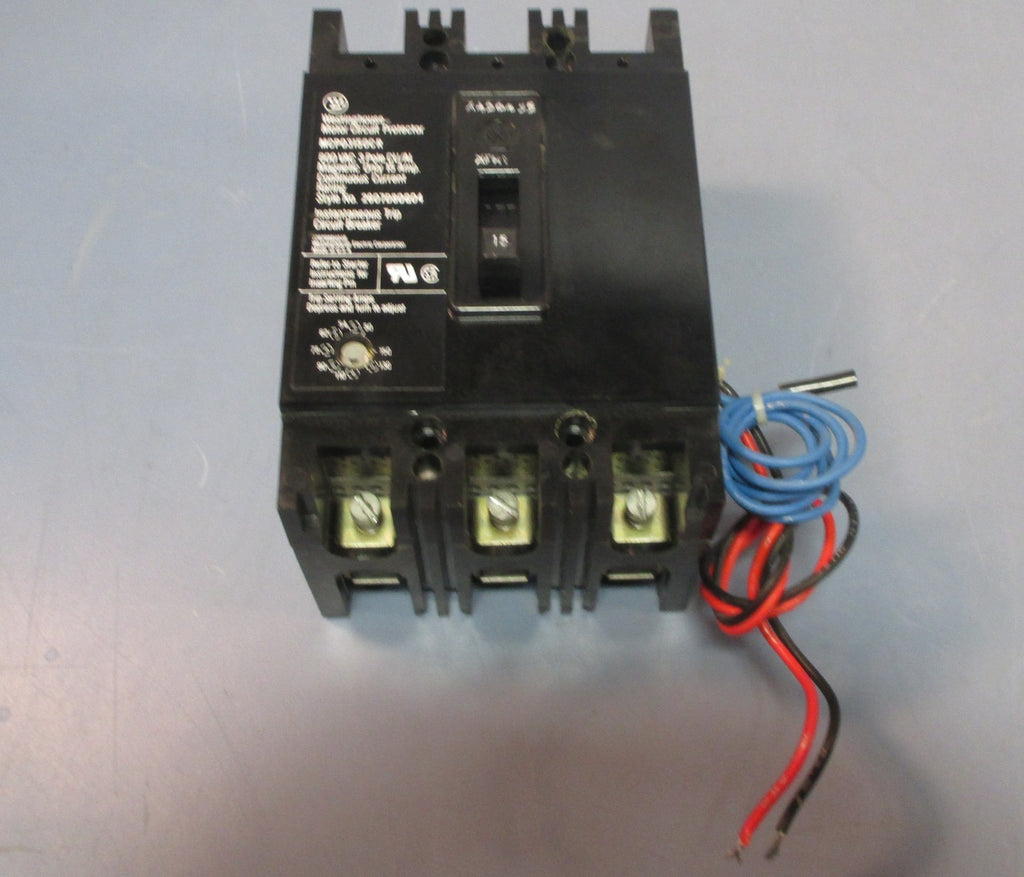

Circuit Breaker For sale is a Westinghouse MCP03150CR Style No. 2607D80G04 Motor Circuit Protector Breaker 15 Amp with Aux Wiring but no Aux Switch Sticker. The breaker is used and came from a working environment. Some light signs of use, wear, mounting and/or discoloration from the previous owner but nothing that will impact product performance. Overall the breaker remains in very good condition.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
