Winsmith 930 Speed Reducer: 930CDSN, 7.5:1 Ratio, 1.125" Shaft Dia
Winsmith 930 Speed Reducer: 930CDSN, 7.5:1 Ratio, 1.125" Shaft Dia
Industrial
Speed Reducer For sale is a Winsmith 930 Speed Reducer: 930CDSN, 7.5:1 Ratio, 1.125" Shaft Dia. The item appears to be new and unused by the previous owner. The item may show slight signs of cosmetic wear from the previous...
$89.99
×
Freight Quote
- Category: Industrial
Speed Reducer

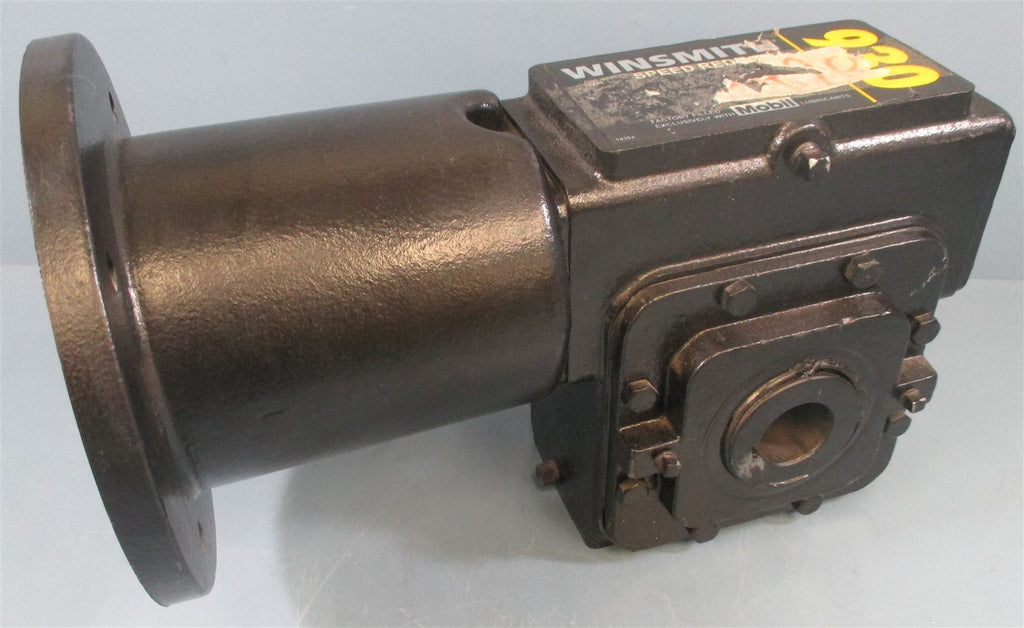

For sale is a Winsmith 930 Speed Reducer: 930CDSN, 7.5:1 Ratio, 1.125" Shaft Dia. The item appears to be new and unused by the previous owner. The item may show slight signs of cosmetic wear from the previous owner such as scratching, discoloration, shelf wear, paint chipping and/or other markings that should not impact the item's performance. Overall the item appears to be in excellent, new, ready to use condition.
ITEM DETAILS
Model #: 930CDSN
Part#: 930CDSS33230BT
Input RPM: 1750
Input HP: 4.63
Ratio: 7.50:1
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
