Yaskawa AC Servo Motor UAACKA-04A A2K 3ph w/Optical Encoder UTOPI-600UB02 Used

Industrial

Yaskawa AC Servo Motor w/Optical Encoder For sale is a Yaskawa AC Servo Motor UAACKA-04A A2K 3ph w/Optical Encoder UTOPI-600UB02. The unit may show slight signs of cosmetic wear from the previous owner such as scratching, discoloration, shelf wear, paint...

$359.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Yaskawa AC Servo Motor w/Optical Encoder

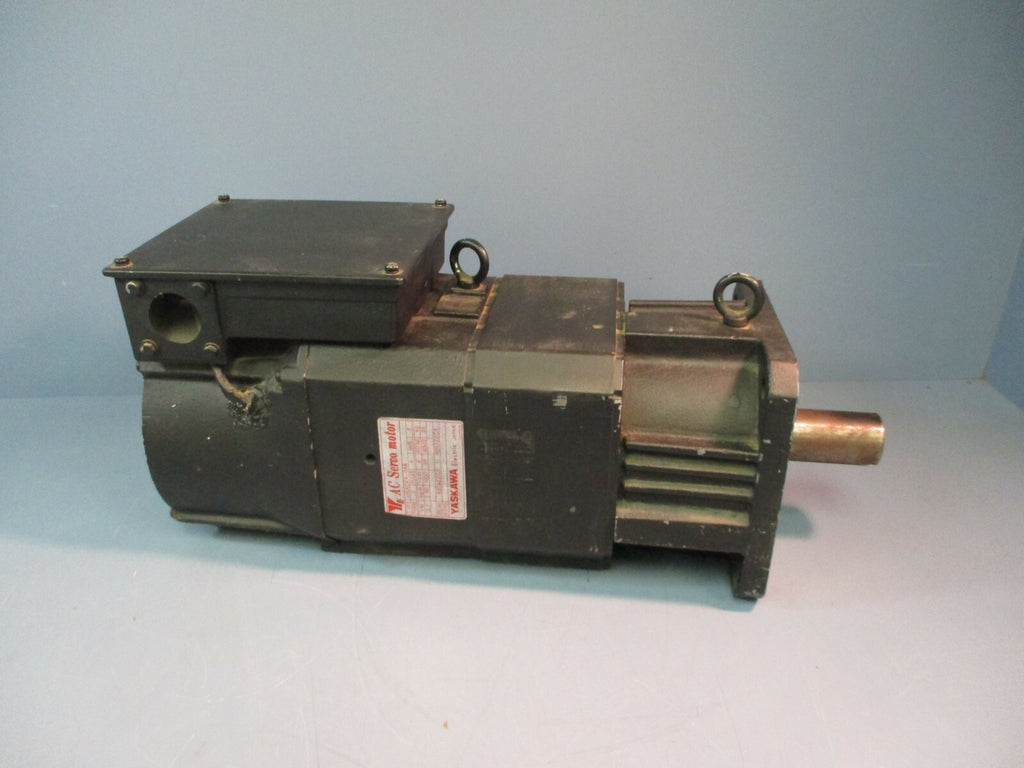

For sale is a Yaskawa AC Servo Motor UAACKA-04A A2K 3ph w/Optical Encoder UTOPI-600UB02. The unit may show slight signs of cosmetic wear from the previous owner such as scratching, discoloration, shelf wear, paint chipping and/or other markings that should not impact the unit's performance. Overall the unit appears to be in very good ready to use condition. The unit includes everything shown in photos.

The Yaskawa AC Servo Motor UAACKA-04A A2K specification are
Phase 3
Poles 4
INS F
kW 3.7

kg.m 2.40
rpm 1500

A 27
rating 50%ED
kg 35

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses.

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.

International Buyers - Please Note:

Import duties, taxes and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.

Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

International Buyers - Please Note:

Import duties, taxes and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.

Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
